WGMD-10X
Product Description
WGMD-10X Geophysical survey Equipment, is multiple channels, high work efficiency, the system can complete the measurement of up to 10 points at one time, compared with the traditional resistivity system, the efficiency of the new system is particularly improved in cross-hole resistivity tomograph and 3D electrical res istivity tomograph
The 10 channel geophysical equipment is ultra-large power supply, ultra-wide range, ultra-high precision—up to 9000W (1500V×6A) power supply capacity, 250Vp-p ultra-wide voltage input range.
The WGMD-10X Geophysical survey Equipment can work with many type accessory, list as below
Data Collection System | WGMD-10V ( 5 Channel),WGMD-10X (10 channel) |
Multi-channel converter | WDZJ-60V/X (5 channel/10 channe) |
WDZJ-120V/X (5 Channel /10 channel) | |
WDZJ-4 /WDZJ-120 (Single Channel) | |
Resistivity Cable | Distrubted Cable PDGF-10V (5 channel),PDGF-10X ( 10 channel) |
Centralized Cable ( 30 channel per pc, 5m and 10m take-out) | |
Underwater Cable | |
Crosshole cable | |
Battery | PDX-100LIII (100V,3Ah,lithium battery) |
PDX-200LIII (200V,3Ah,lithium battery) | |
PDX-200LV (200V,5Ah,lithium battery) | |
PDX-480 LⅡ (60V～480V ,2.2AH,lithium battery) | |
PDX-1(144V,1.3Ah,Lead-acid batteries) | |
Electrode | Copper electrode |
Non-polarized electrode |

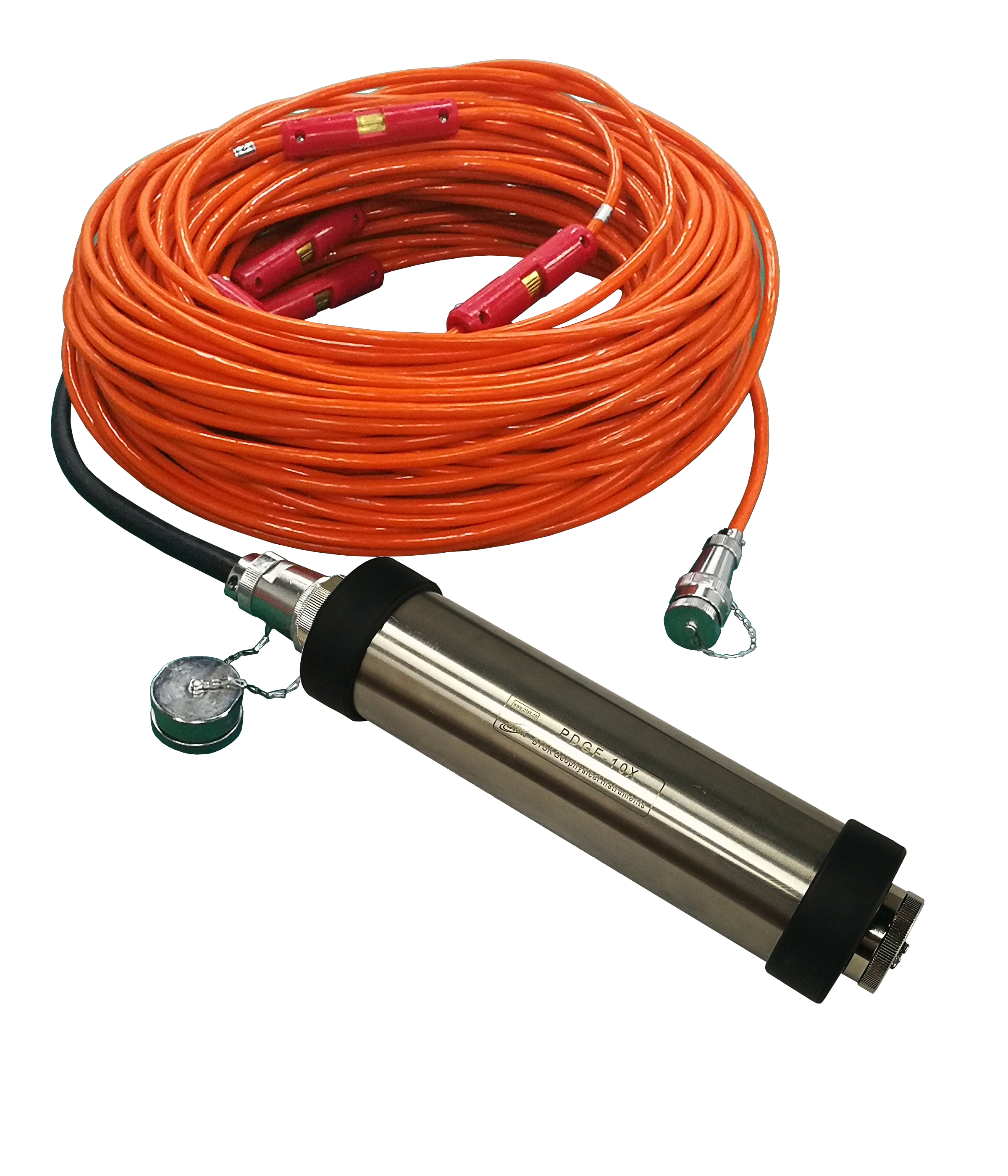

Distrubted resistivity Cable

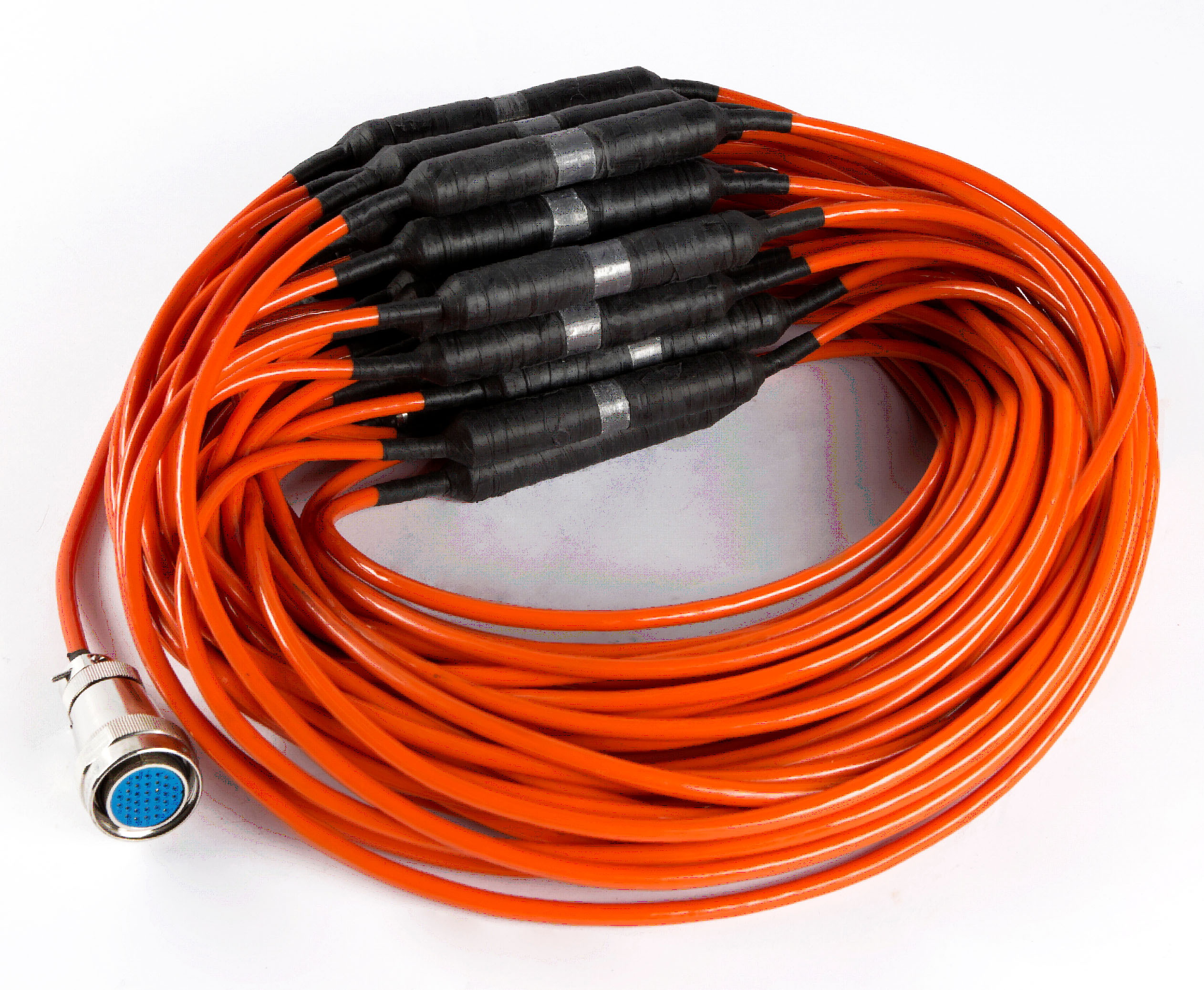

Underwater Cable
