100m 500m 1000m Underwater Borehole Well Cctv Camera System Borehole Camera Price GYGD

100m 500m 1000m  Underwater Borehole Well Cctv Camera System Borehole Camera Price GYGD

Overview

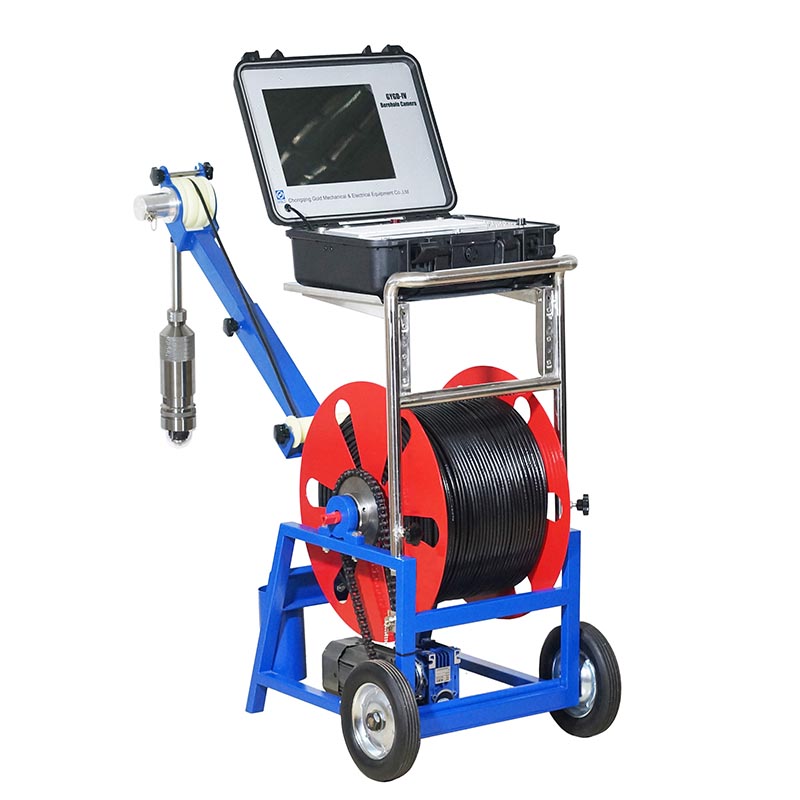

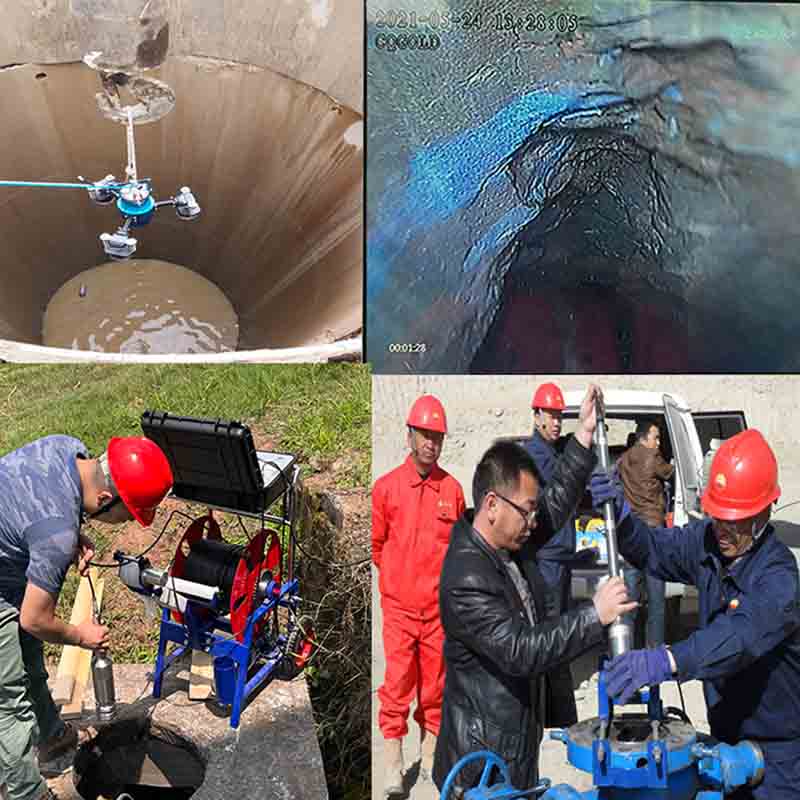

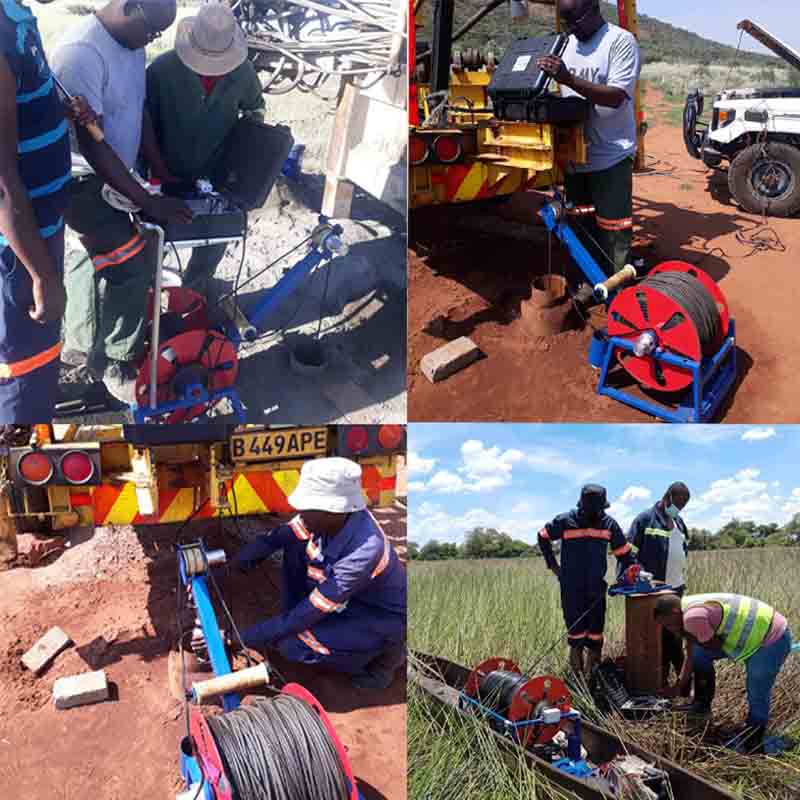

Primarily found in Oil & Gas and Mining applications, Borehole Cameras are meant to cover long distances. Borehole Cameras usually come on a spool or a reel, as Insertion Tube or Insertion Probe lengths can exceed hundreds of meters. Closely related to Drain Cameras, Pipe Cameras, or Sewer Cameras, features like Articulation or Working Channels are usually not native to Borehole Cameras. Depending on the specific inspection application, Borehole Cameras can be used on mines, oil wells, water wells, pipelines, and even sewer lines.

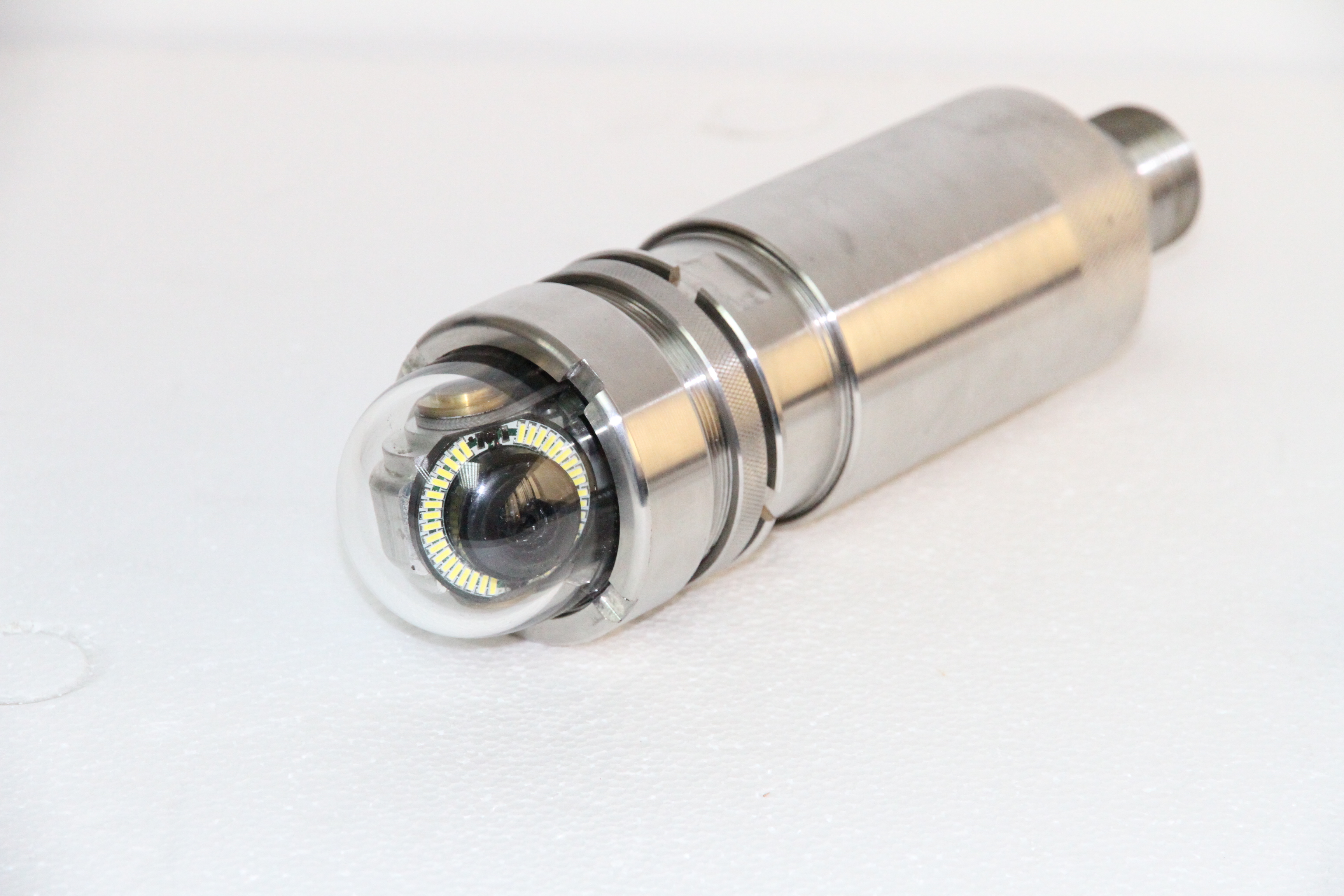

1. High-definition camera technology

Equipped with a high-resolution camera with up to [X] pixels, it can capture tiny details underground, whether it is rock texture, cracks or the inner wall of the pipe, it can record it truthfully. The camera has excellent low-light sensitivity and can capture clear and bright images even in dimly lit deep well environments.

2. All-round rotation and positioning function

It can achieve 360-degree all-round rotation, accurately control the camera's shooting angle, and not miss any corner. At the same time, the advanced positioning system can accurately record the depth and orientation information of the camera, providing a reliable basis for subsequent data analysis and positioning of abnormal points.

3. Introduction to imaging principle

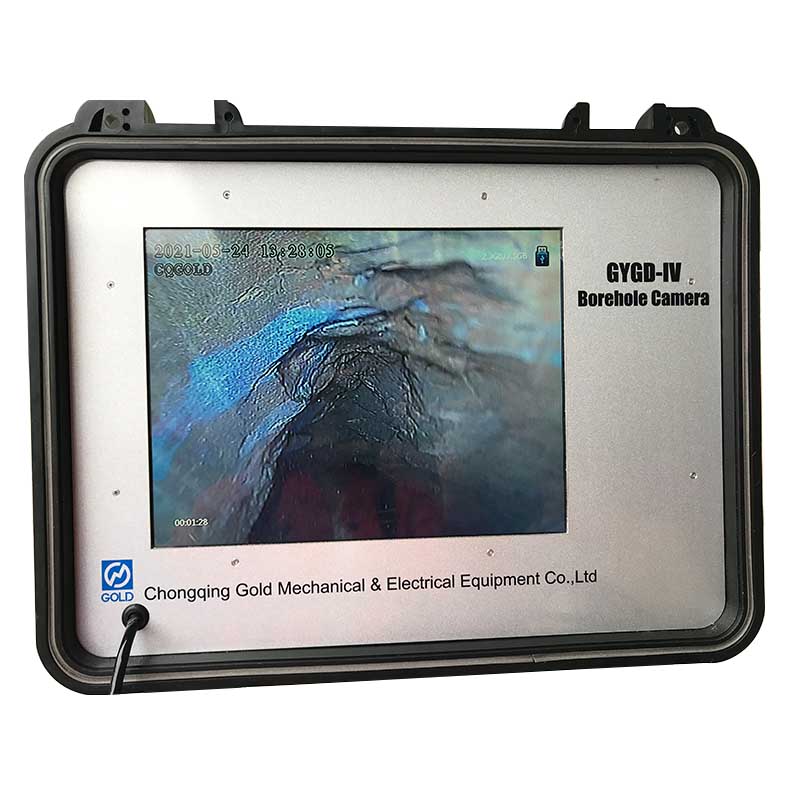

The camera collects underground image information, then converts the optical signal into an electrical signal, and then undergoes digital processing and encoding, and finally transmits the image to the ground monitoring equipment in real time for display. The whole process is fast and smooth, ensuring the timeliness and accuracy of the image.

1. High definition and stability

The images presented are rich in details and realistic in color, allowing you to observe the underground conditions as if you were there. The equipment uses durable materials and stable circuit design, which can adapt to the complex and harsh environment of the underground, work stably for a long time, reduce the probability of failure, and reduce maintenance costs.

2. Depth detection capability

It can meet the detection needs of different depths, with a maximum detection depth of [X] meters, and can perform excellent performance in both shallow and deep well operations. And as the depth increases, the image quality can still remain relatively stable without serious distortion or blurring.

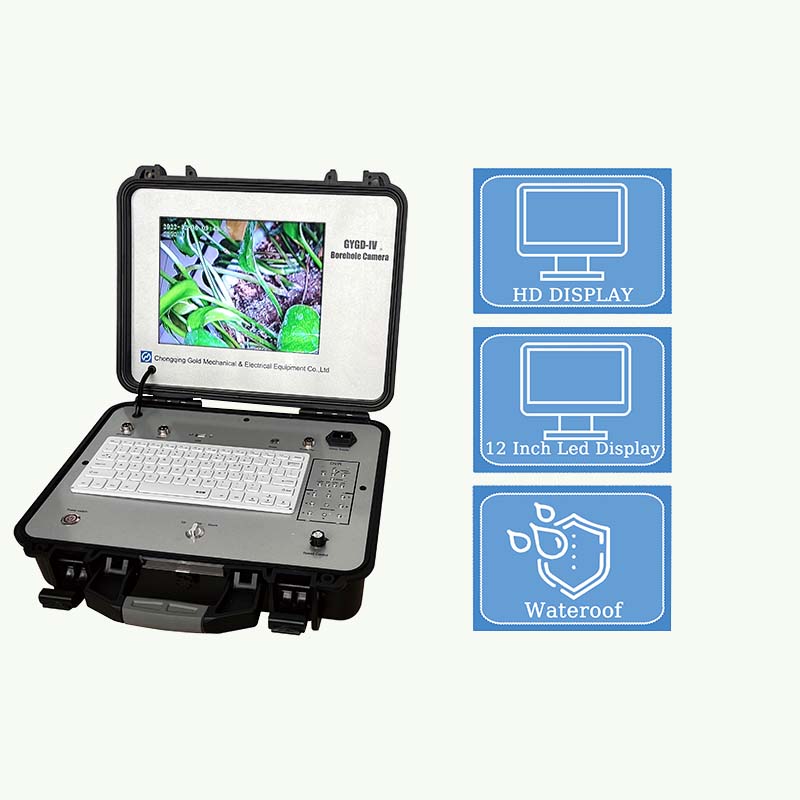

3. Convenient operation and real-time monitoring

The operation interface is simple and intuitive, easy to use, and even non-professionals can operate it proficiently after simple training. The ground monitoring equipment can display the underground images in real time and support multiple people to watch at the same time, which is convenient for on-site operators and technical experts to jointly analyze and judge, and adjust the operation plan in time.

4. Data storage and playback function

It has a large-capacity storage function, which can store a large amount of underground images and related data information, which is convenient for subsequent query and comparative analysis. Images and data can be played back at any time, which helps to conduct in-depth research on changes in underground geological structures, equipment operating conditions, etc., and provide strong support for long-term underground operation management.

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is specialized in manufacturing and developing of Geophysical Exploration Instrument such as Resistivity Meter, IP Instrument, Resistivity Image, Seismic Instrument, Electromagnetic Instrument, Borehole Camera, Borehole Logging System, Water Level Meter; Borehole Drilling Equipment including Core/ Water Well/ Tunnel/ Engineering/ Anchor Drilling Rigs&Accessory and Geodetic Surveying Instrument(GNSS RTK System, Total Station, GIS Mapping and Echo Sounder).
