20000NT 100000NT Geological Exploration Equipment WCZ-3 Proton Magnetometer Mineral Exploration

WCZ-3 proton magnetometer is a new generation of fully digital proton magnetometer based on our company's WCZ-2 proton magnetometer, which is realized by using dual 32-bit single-chip technology. It is also the fastest and most comprehensive ground proton magnetometer so far. Its measurement speed is greatly improved, its gradient tolerance is greatly enhanced, and its weight is greatly reduced. It has more complete GPS navigation capabilities and is competent for mobile total field measurement, horizontal gradient measurement, vertical gradient measurement and base station measurement, etc. The instrument has a magnetic field measurement accuracy of ±1nT and a resolution of up to 0.1nT, which fully meets the requirements of the "Ground High-Precision Magnetic Measurement Work Procedure" issued by the former Ministry of Geology and Mineral Resources.
Availability:
Quantity:
  • WCZ-3

  • GOLD

Product Description

20000NT 100000NT Geological Exploration Equipment WCZ-3 Proton Magnetometer Mineral Exploration

proton magnetometer7


  WCZ-3 proton magnetometer is a new generation of fully digital proton magnetometer based on our company's WCZ-2 proton magnetometer, which is realized by using dual 32-bit single-chip technology. It is also the fastest and most comprehensive ground proton magnetometer so far. Its measurement speed is greatly improved, its gradient tolerance is greatly enhanced, and its weight is greatly reduced. It has more complete GPS navigation capabilities and is competent for mobile total field measurement, horizontal gradient measurement, vertical gradient measurement and base station measurement, etc. The instrument has a magnetic field measurement accuracy of ±1nT and a resolution of up to 0.1nT, which fully meets the requirements of the "Ground High-Precision Magnetic Measurement Work Procedure" issued by the former Ministry of Geology and Mineral Resources.

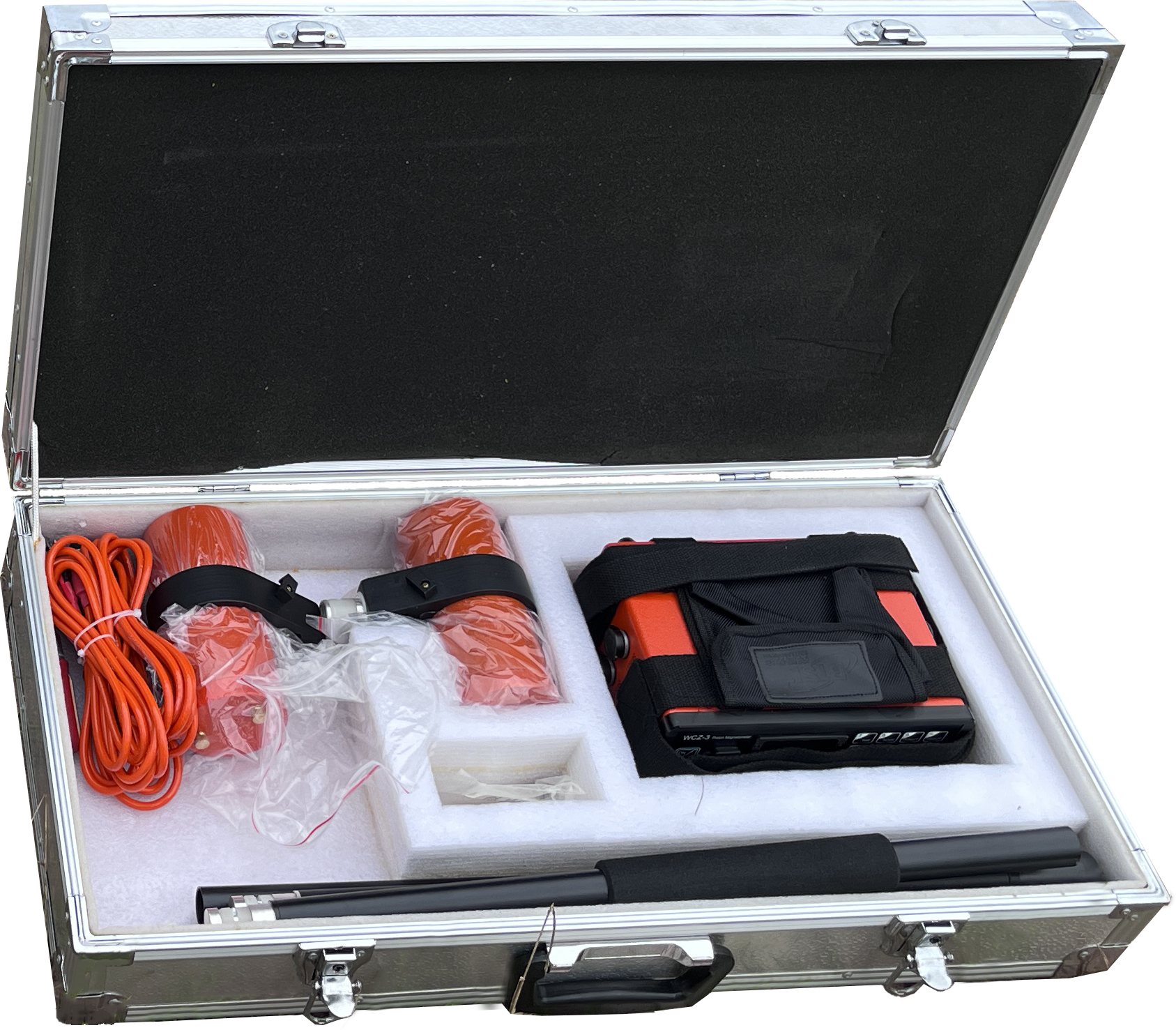

Magnetometer (5)

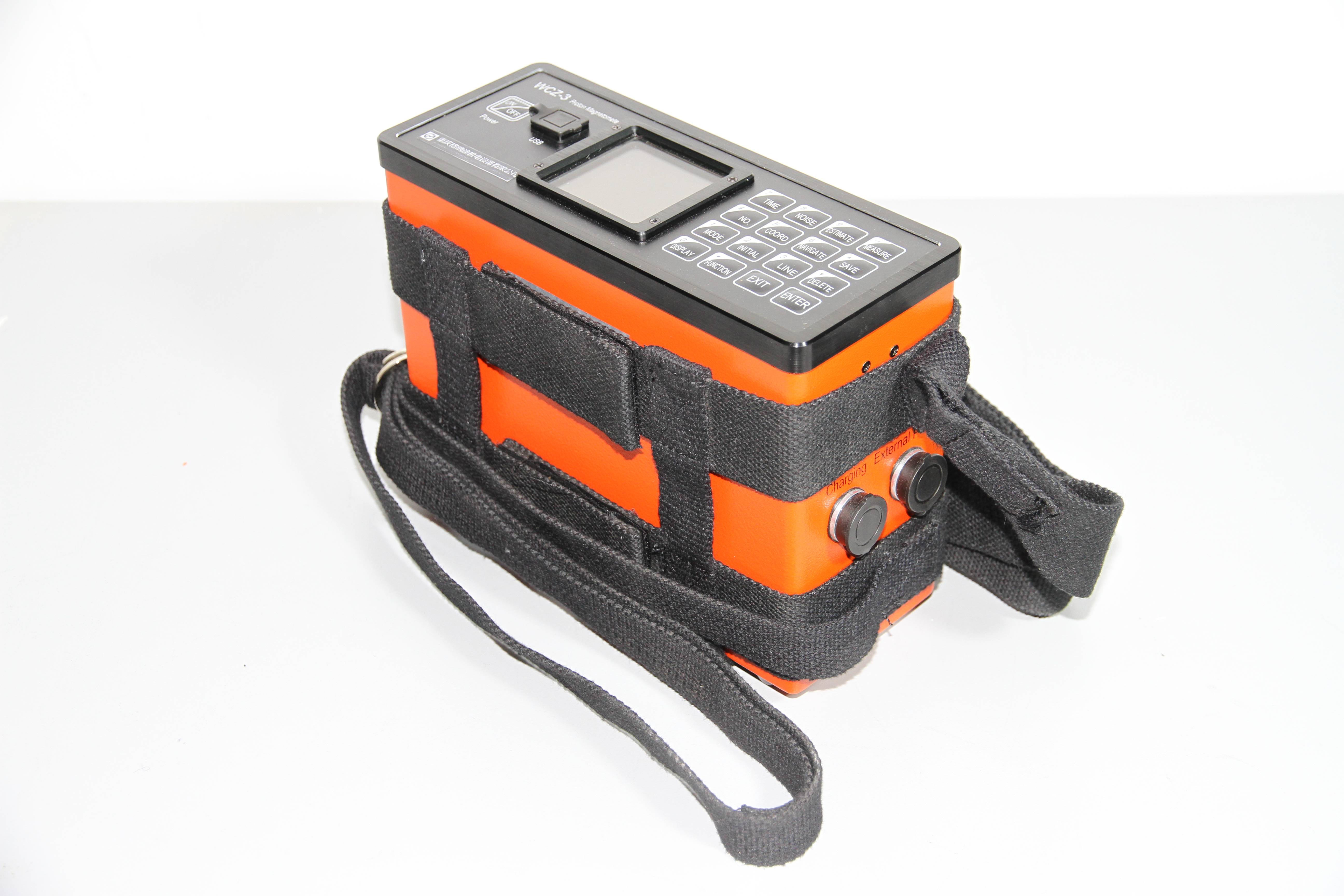

Magnetometer (3)

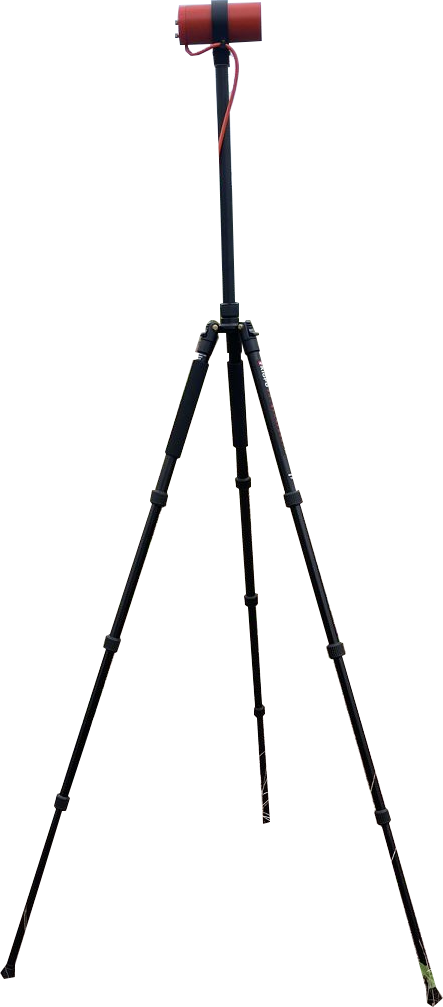

图层 1

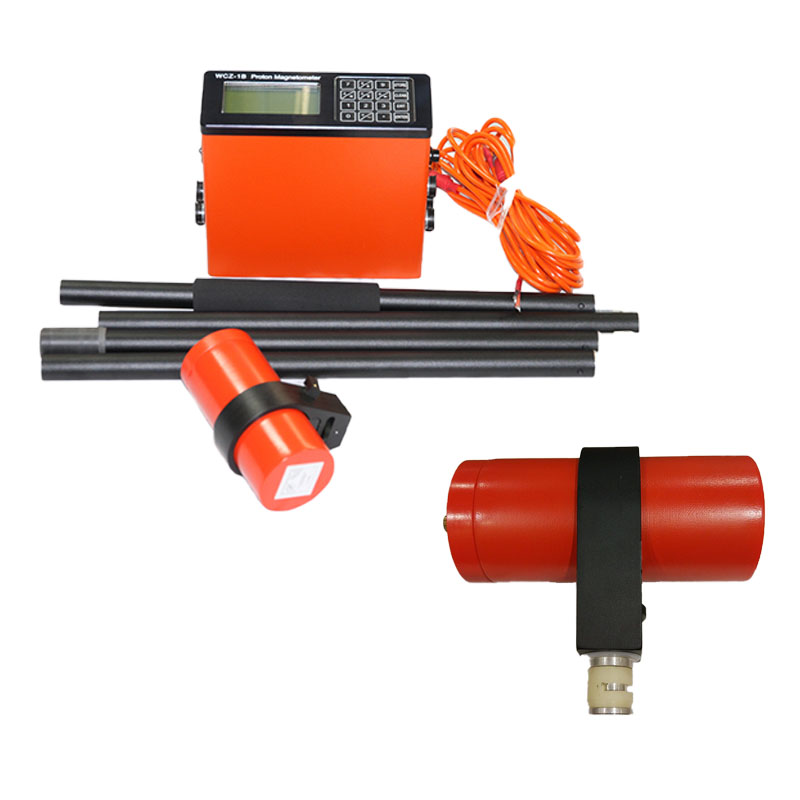

proton magnetometer9


Application:

* Mineral exploration, iron ore,lead zinc ore,copper ore ,etc.
* Cooperate with mineral survey, research on buried depth, attitude and continuity of mineral ore, research on shape and size of mineral ore, estimate the scale of mineral deposit
* Exploration of petroleum, natural gas, research on geological structure and geo-structure in connection with gas/oil
* Reconnaissance survey, detail survey, geologic mapping
* Surface daily change station of geomagnetic survey of aviation and ocean
* Fault location
* Archaeology
* Hydrology
* Engineering survey,pipeline detection, etc.
* Monitor the earthquake precursors, volcano survey, other environmental and isastrous-geological work.
* Detection of minor-scale ferromagnetic body, etc.



Main Features:

1.  Single point mode: Only one sensor is used to detect the total absolute value of earth-magnetic zone where the sensor is.
2.  Automatic mode: Only one sensor is used in automatic mode, which can start the instrument at set time and automatically do measure work by a fixed time interval repeatedly. The starting time and time interval can be set by software. This function is mainly used for daily change correction.
3.  Used for measuring the total field of the terrestrial magnetic field and gradient measurement (horizontal gradient or vertical gradient, special probe and probe rack are needed.).
4.  Used for both field work and base station measure.
5.  Built-in real time clock, measurements are stored with sampling instant. Even timing measure and storage can also be realized.
6.  Both full scale automatic tuning and manual tuning.
7.  The whole system is equipped with backpack and braces so that the measure work can be finished by single.
8.  Two kinds of computer interface: USB, RS-232C.
9.  Professional geologic software used to protract isoclines map, profile map and so on.

10. Memory 240,000 measuring point with the function of blackout protection.



Technical Specification:


Channels

1. channel(standard configuration, for separate gradient measurement)

2. channels(optional, for simultaneous gradient measurement)

Measuring range

20,000 nT ~ 100,000nT

Accuracy

±1nT

Resolution

0.1nT

Gradient permitted

≤8,000nT/m

Measuring speed larger than 2s/reading
Station measuring interval 2~60s, optional

Data stored

large than 2 billion points readings, with power-off protection

GPS Positioning accuracy higher than 2.5m CEP

LCD display

160×160, with backlight

Keyboard input

16 keys

Port

USB standard serial port

Power source

Rechargeable lithium battery (for 4000 times reading), external  power supply optional (12V)

Console dimension

206mm × 85mm ×155mm

Weight

1.5Kg (including battery)

Sensor size

φ75mm×155mm

Sensor weight

0.8 Kg

Working temperature

-10 °C~+50 °C
