Product Description

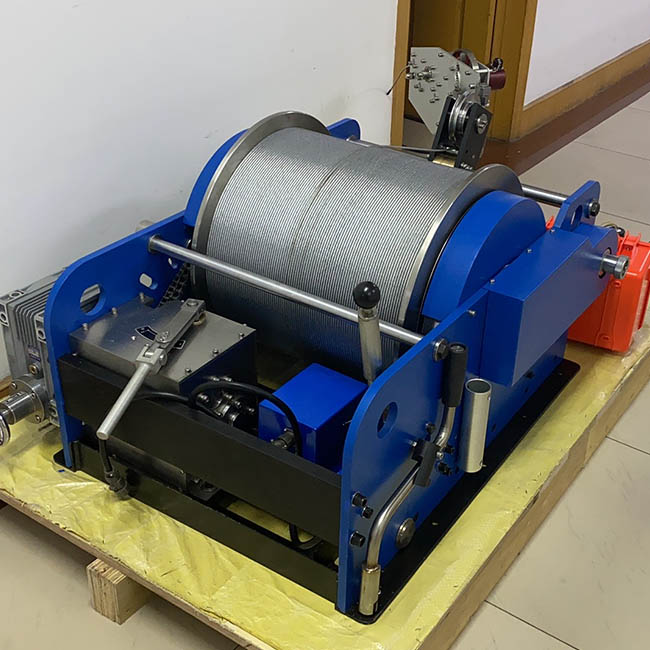

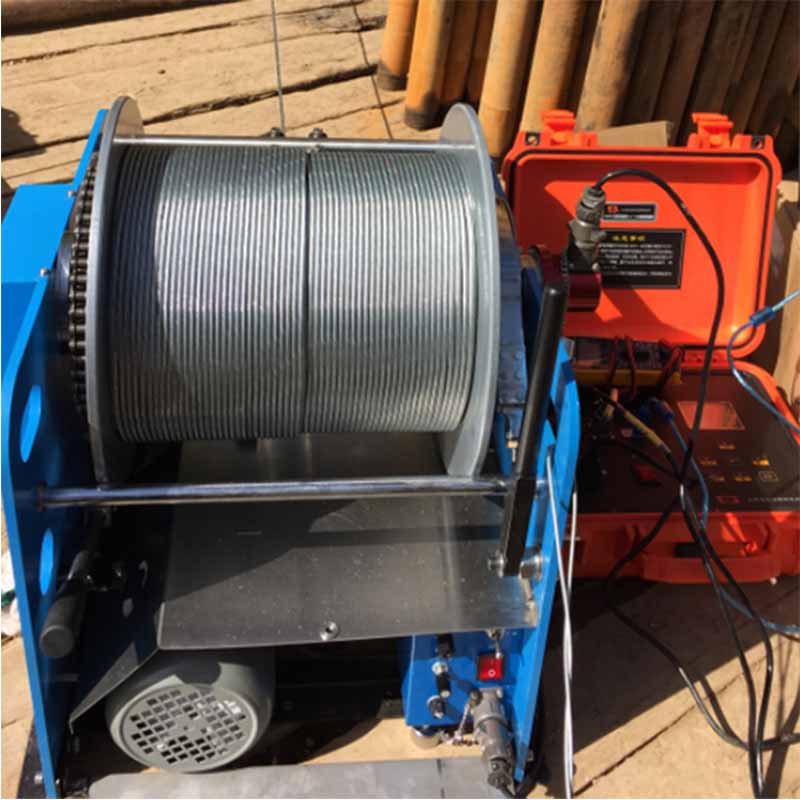

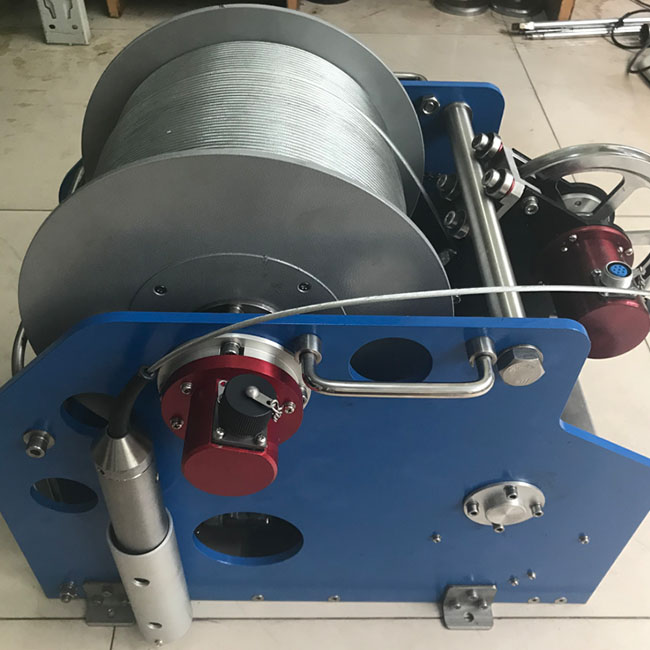

300m Automatic displacement cable pulling well logging winch machine is a product designed specifically for the convenience of field work, used in mountainous and underdeveloped areas, and is the most ideal logging equipment. It has the following characteristics: Heavy and light, greatly facilitating outdoor transportation. The winch drum and other components are made of non magnetic and non rusting high-strength aluminum alloy materials, which are not only lightweight but also have the characteristics of no self inductance and little interference. It has functions such as wide speed range, constant torque, and multiple fault protection.zmwm02 The overall use of electrostatic coating protection has achieved a high level of reliability, appearance, and resistance to environmental changes in the application of the winch. The winch can also be manually operated.
Parameters |
|
|
|
|
|
type | JCH-3000 | JCH-2000 | JCH-1000 | JCH-300 | JCH-500 |
Dimensions | 940×800×720 | 920×680×700 | 710×620×670 | 560×490×360 | 540×400×380 |
Weight | 150 kg | 120 kg | 110 kg | 25 kg | 18 kg |
Motor Power | 2.2 kw | 1.5 kw | 1.1 kw | manual | manual |
Pulse Number | 1 circle per 4000 | 1 circle per 4000 | 1 circle per 4000 | 1 circle per 4000 | |
Reelable Length | 3100 M | 2200 M | 1200 M | 360 M | 700 M |
370 (Φ7mm rubber cable) | |||||
Core Number | 6 core | 6 core | 6 core | 6 core | 6 core |
Advanced AC variable-frequency regulating speed technology.
Automatic constant speed and manual speed control,automatic overload protection.
Automatically calculate the depth,self-compensate depth error.
Self-locking brake and manual brake.
Chongqing Gold Mechanical & Electrical Equipment Co., Ltd is specialized in manufacturing and developing of Geophysical Exploration Instrument such as Resistivity Meter, IP Instrument, Resistivity Image, Seismic Instrument, Electromagnetic Instrument, Borehole Camera, Borehole Logging System, Water Level Meter; Borehole Drilling Equipment including Core/ Water Well/ Tunnel/ Engineering/ Anchor Drilling Rigs&Accessory and Geodetic Surveying Instrument(GNSS RTK System, Total Station, GIS Mapping and Echo Sounder).
