300m/500m Hi-Optv Borehole Televiewer – High Definition Imaging for Geotechnical and Mining Applications

The 3D Borehole Imaging Camera Borehole CCTV Camera is omni-directional borehole inspection equipment integrated with borehole imaging, borehole recording (peering), and borehole trajectory detection.
Availability:
Quantity:
  • GD-C1201

  • GOLD

Product Description

300m/500m Hi-Optv Borehole Televiewer – High Definition Imaging for Geotechnical and Mining Applications

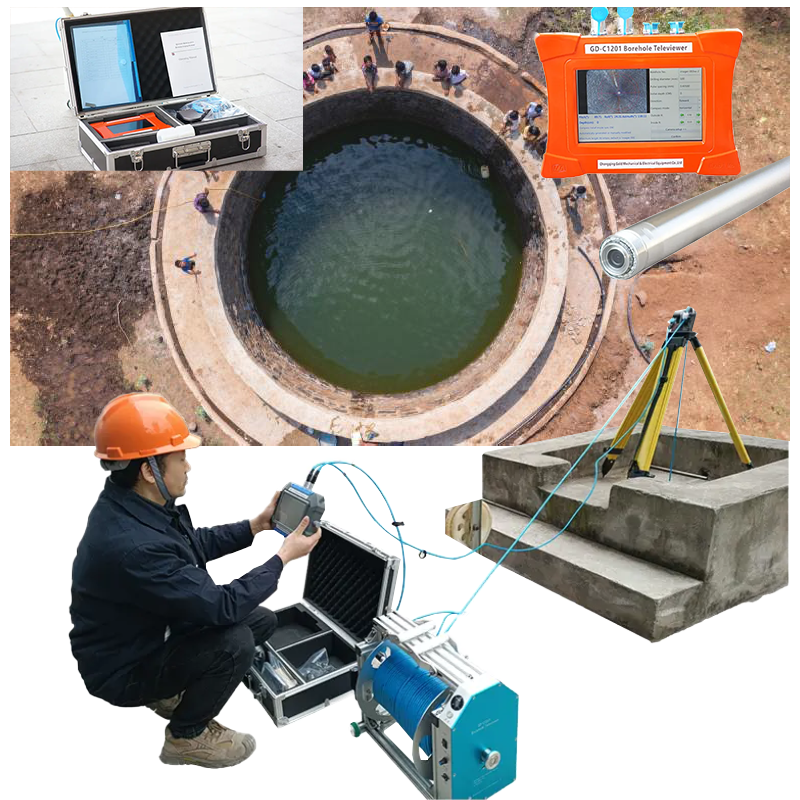

6


Applications:

  • Stratum Structure Divide: Accurately identifies and divides different geological layers within boreholes.

  • Well Wall Stratum Crack Detection: Detects cracks and fractures in borehole walls for structural integrity assessment.

  • Karst Development Discrimination: Identifies karst formations and cavities in subsurface geology.

  • Distinguish Fractured Development Zone: Pinpoints zones with high fracture density for geological analysis.

  • Determine Karst Distribution Position: Maps the location and extent of karst features in boreholes.

  • Long-Time Underground Borehole Monitoring: Enables continuous monitoring of borehole conditions over extended periods.


GD-C1201 18


Features:

  • Highly Integrated: Combines system control, image capture, display, and memory in a single unit.

  • Easy Expansion: Supports multiple functions like borehole imaging, recording, and drilling trajectory measurement through software and probe configurations.

  • High Intelligence: Features an ARM + DSP kernel for fast image processing (25f/s) and real-time panoramic image acquisition.

  • High Reliability: Sealed, waterproof, and dustproof design ensures stability in harsh environments.

  • High Definition: Equipped with a 700-line color camera, 1.3 million pixels, and 0.1mm resolution for crack detection.

  • Wide Visual Angle: Offers a 38° elevation angle, 17° depression angle, and 360° horizontal angle for panoramic imaging.

  • Good Portability: Compact and lightweight design for easy transport and field use.

  • Low Power Requirement: Operates on built-in rechargeable batteries or external 12V power sources.

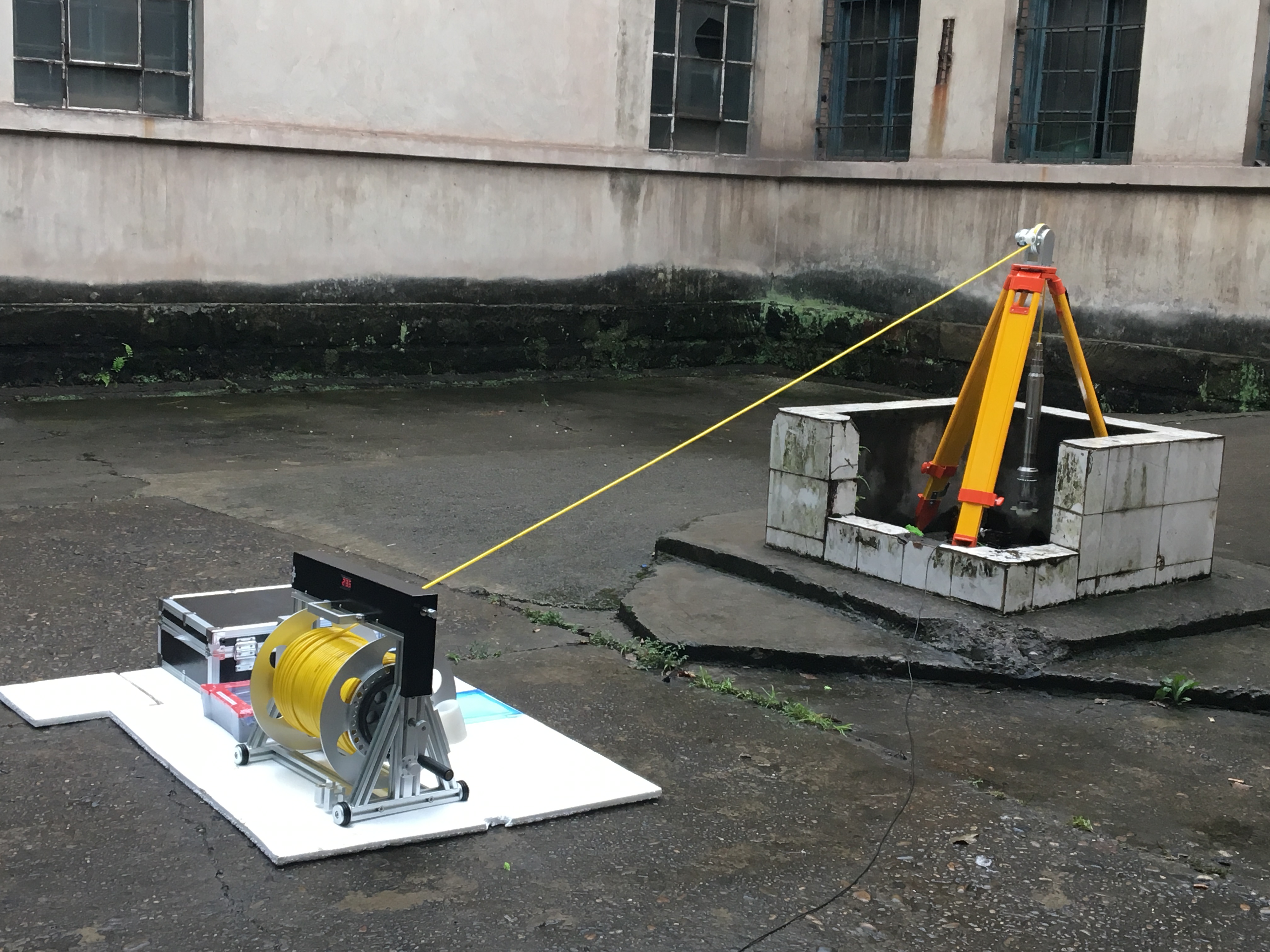

IMG_6348


Host

Display mode:

7 inch true color LCD,800×600 backlight can be adjusted

Processor:

Embedded dual-core processor with high performance and low power

Memory:

32G TF memory card

Operating system:

Linux operating system

Operation mode:

Photoelectric knob

Power supply mode:

12V lithium battery can be built in or storage battery can be externally connected to supply power, the continuous working hours will be no less than 10 hours.

Data interface:

USB2.0 interface

Protection level:

IP67

Overall dimensions:

255mm×192mm×74mm

Weight:

≤1.8KG

Depth encoder

Protection level:

IP67

Power supply mode:

Power supplied by host

Accuracy of sounding:

0.1mm

Weight:

≤1KG

Probe

Probe diameter

Φ24mm, Φ40mm, Φ52mm, Φ65mm, Φ100mm

Detection of bore diameter

Φ30mm~Φ600mm

Protection level:

When immerse into 1000m depth of water, no leakage

Power supply mode:

Power supply by host for conventional probe, and 12V lithium battery built in for deepwater probe.

Hole depth detection:

≥1000m

Controller:

High performance microcontroller built in

Camera:

Color low illumination 700TV Lines, 0.01Lux, full view360 degree

Auxiliary light:

≥30Lux, the brightness can be adjusted through host software

Image pixel:

130,0000 pixel

Propulsion mode:

Horizontal incline hole connected to exclusive guide pushrod

Three-dimensionalcompass:

Angle range: ±90, precision: 0.5, resolution ratio: 0.01; azimuth range: 0~360, precision: 0.5, resolution ratio: 0.1, the probe is allowed to roll 360.

Overall dimensions:

Φ52×506mm

Weight:

≤4KG
