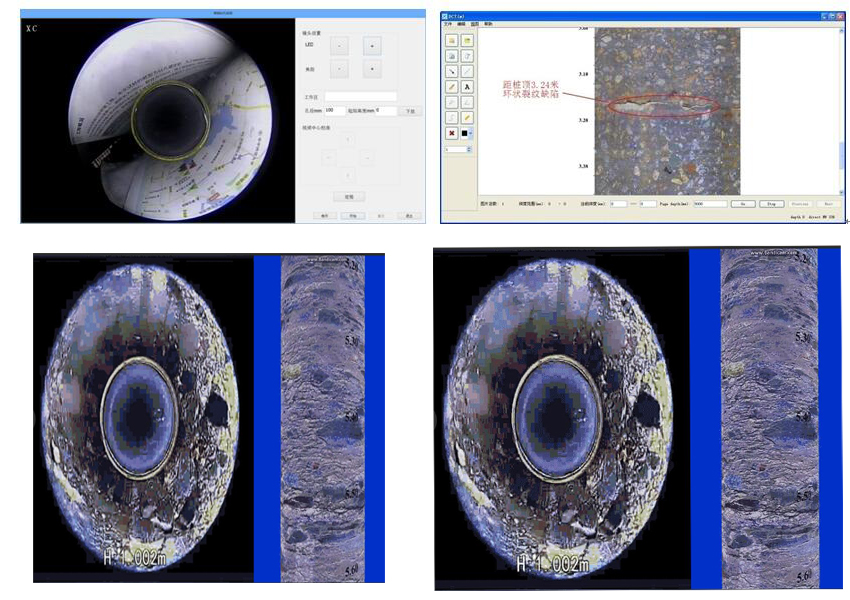

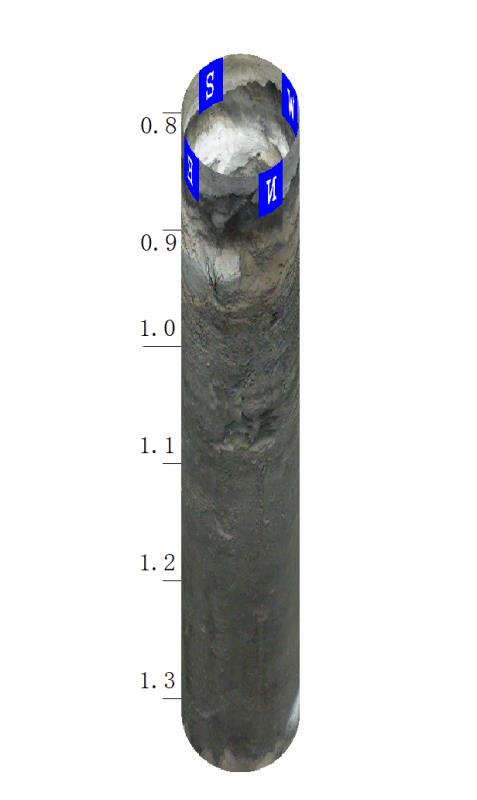

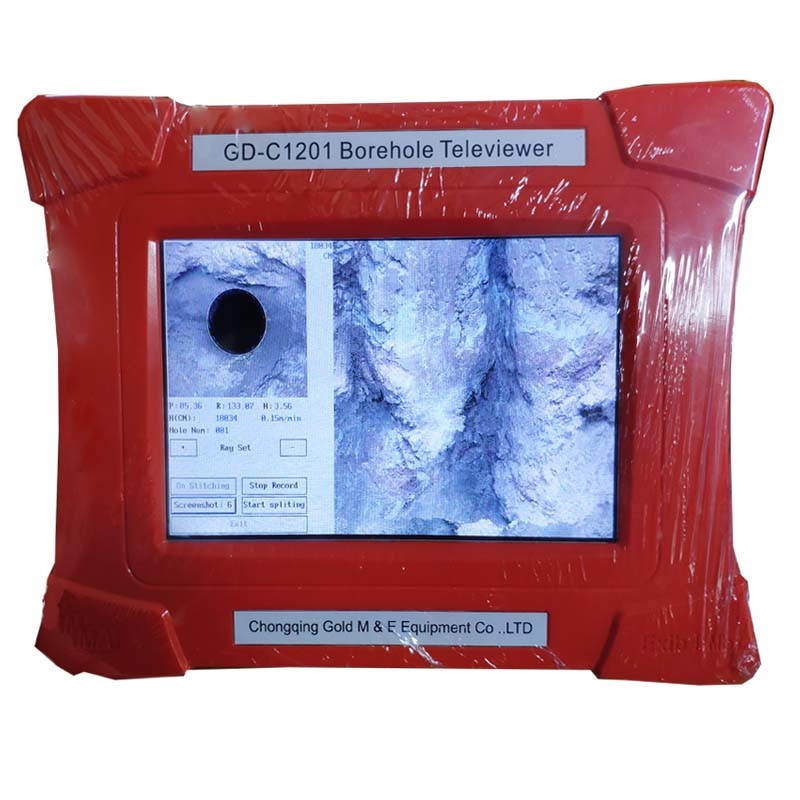

The GD-C1201 Multi-function Borehole Imaging Analyzer is a high-tech equipment for comprehensive testing of boreholes. The product integrates borehole imaging, recording (peering), snapshot and trajectory measurement. One test is done to complete the workload of many previous tests. At the same time, dynamic video, local high-definition photo, full borehole wall imaging, and trajectory can be obtained efficiently and quickly.

The televiewer takes the low power embedded dual core processor as the core, with high definition high TV line camera and military level high precision space angle measuring device, supplemented by advanced control algorithm and image processing algorithm and other software systems, to synchronize all the functions. The product design takes full account of the actual working environment in the field, striving for easy operation and stable system performance.

For the functional boreholes, such as gas drainage holes and drainage holes, the actual hole position, direction and depth can be checked to meet the design requirements, the breakage degree of coal seam and rock mass and the location of the outlet can be observed, the effect of gas drainage is evaluated and the effect of drainage and drainage is evaluated.
