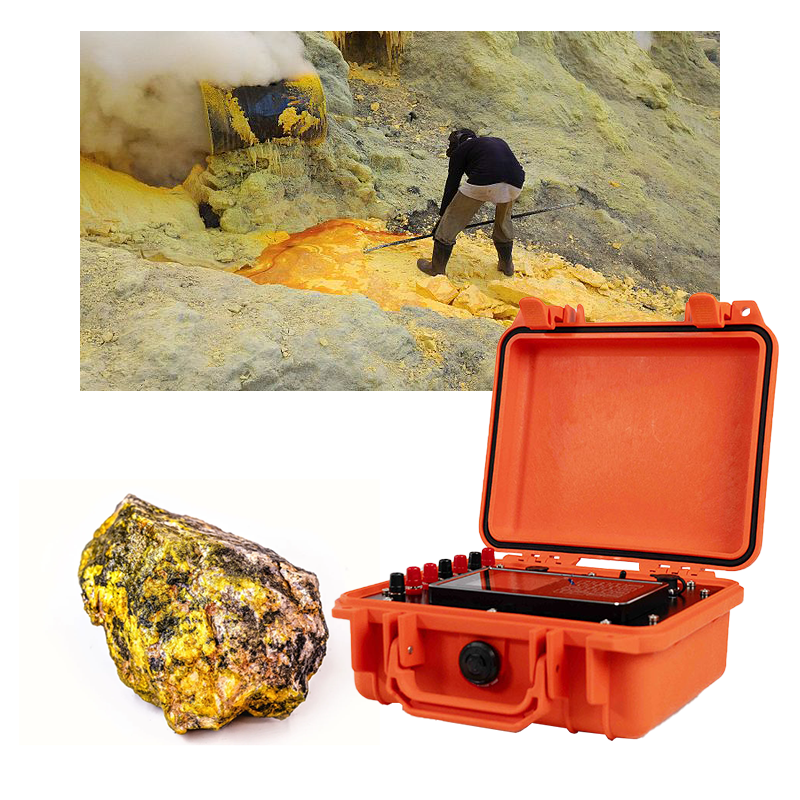

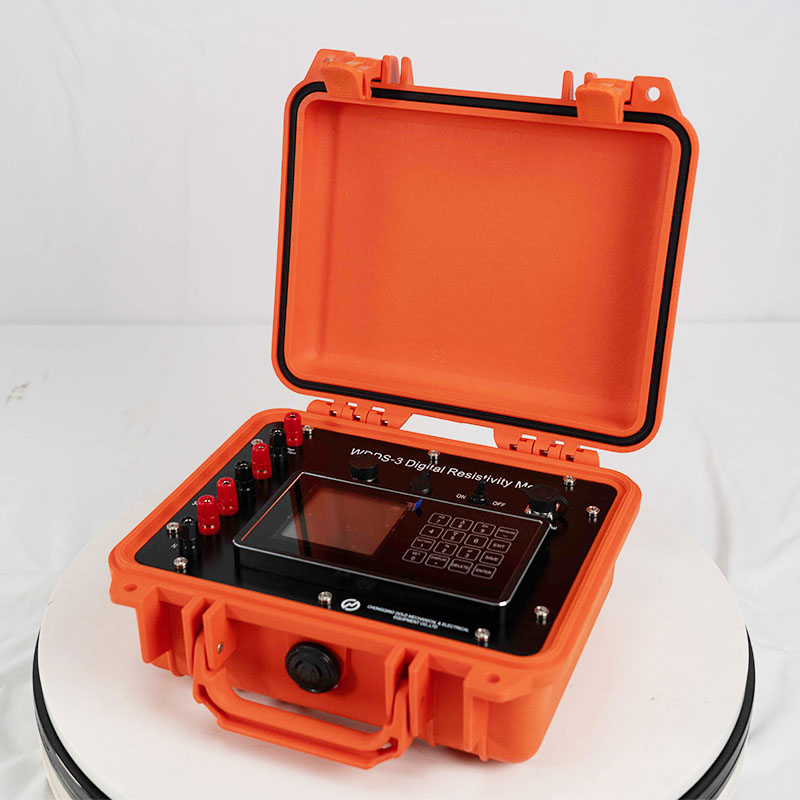

The Earth Resistivity Meter is a state-of-the-art instrument designed for comprehensive subsurface exploration. It integrates advanced resistivity and IP imaging technologies, making it indispensable for a wide range of applications.

Key Features:

• Multi-functionality: Capable of 2D and 3D resistivity imaging, IP measurements, and groundwater detection.

• High precision: Measures voltages as low as 0.01μV and currents as small as 0.02μA with ±0.5% accuracy.

• Portable design: Weighs less than 50 kg, making it ideal for fieldwork.

• Robust construction: Encased in a durable, weatherproof casing, it is built to withstand harsh environmental conditions.

Applications:

• Groundwater exploration: Identifies water reservoirs and assesses hydrogeologic conditions.

• Pollution monitoring: Detects contamination in soil and groundwater.

• Mineral exploration: Locates metallic and non-metallic mineral deposits.

• Geotechnical studies: Analyzes soil and rock properties for construction projects.

Technical Specifications:

• Max voltage: 1000V.

• Max current: 5A.

• Input resistance: ≥50MΩ.

• SP compensation range: ±10V.

• Operating temperature: -10°C to +50°C.

Advantages:

• High resolution: Provides detailed subsurface images for accurate analysis.

• Anti-interference technology: Utilizes multi-stage filtering for clean data.

• User-friendly interface: Supports real-time data display and multiple measurement modes.

• Data connectivity: Compatible with computers and mobile devices for efficient data management.
