GYGD-III
GOLD
Product Description

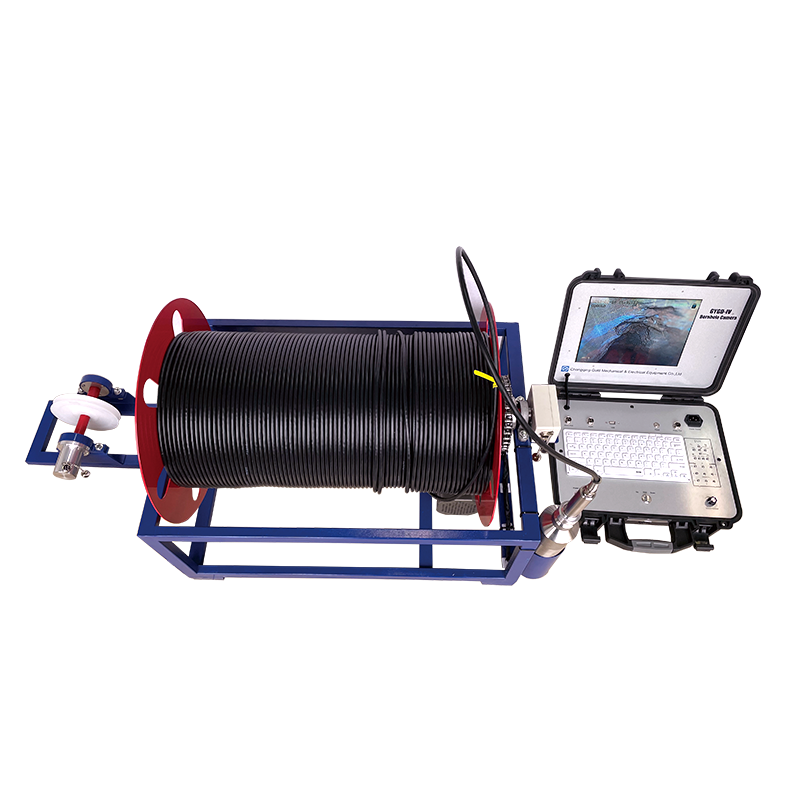

The underwater inspection camera is mainly used in underwater, borehole, water well drilling hole engineering, hydrology, mining, petroleum, geotechnical, civil and other units or departments.

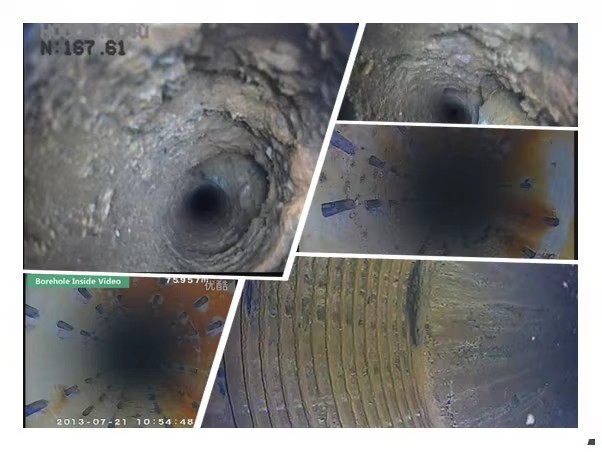

It can be used to observe the characteristic of geologic body in drill hole, well hole, well drilling, oil well and pile foundation etc, such as rock structure, geological structure, rock strike, faults, fissures, dissection, underwater and undersea survey.
No. | Name | Dimension | Specification |

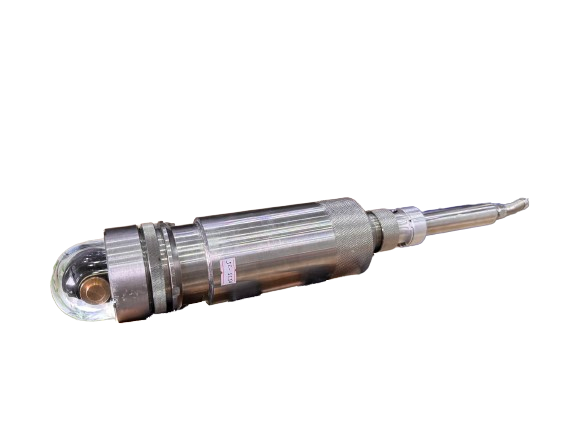

1 | Probe | Dia.: 75mm
| (1) Front lens are imported resins, (2) Not easy damaged, (3) Pressure is 16-30Mpa (can be under 3000m deep water) (4) Light: LED Lights |
2 | Camera |
| (1) Inductor 1/3'' CCD, (2) Image definition is HD 850 TVL (3 Watertight (4) Camera Type: Panoramic/360 degree rotary |
3 | Professional Cable | 0-2000m(optional) | (1) Tension is 150kg, (2) Destroy tension is 260kg |

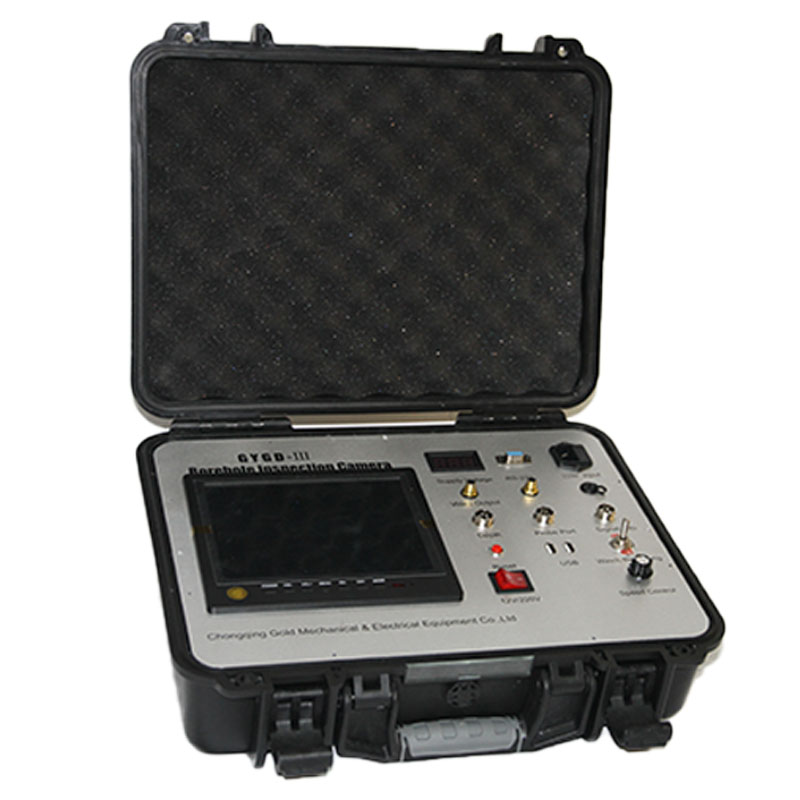

4 | Control Machine |  | (1) 220V/110V/12V customized (2) LCD display (3) Aircraft grade aluminum alloy material |

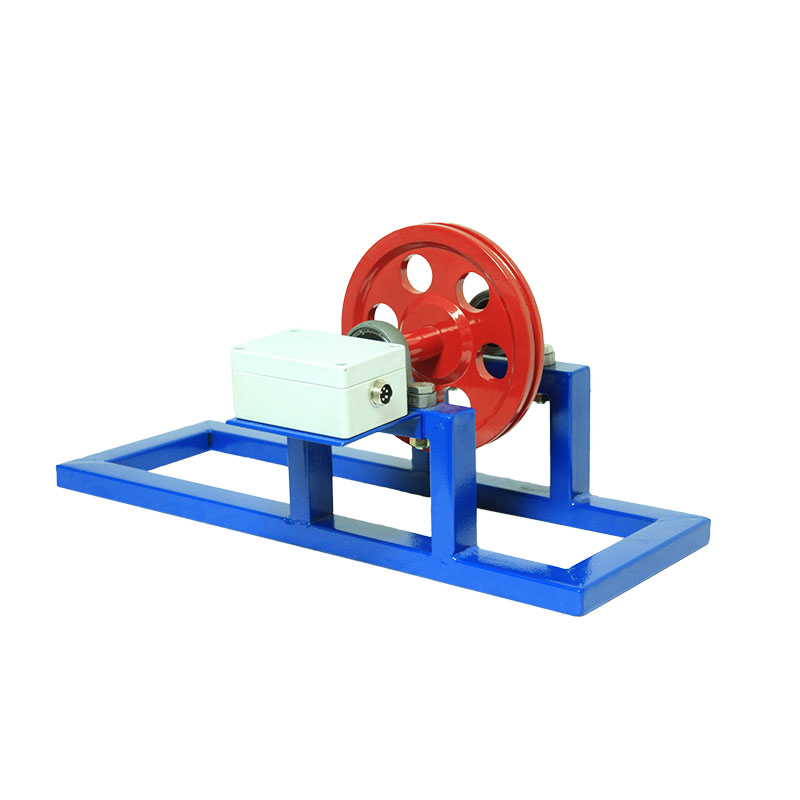

5 | Down-hole Pulley |  | Can change the pulley size according to the well opening size |

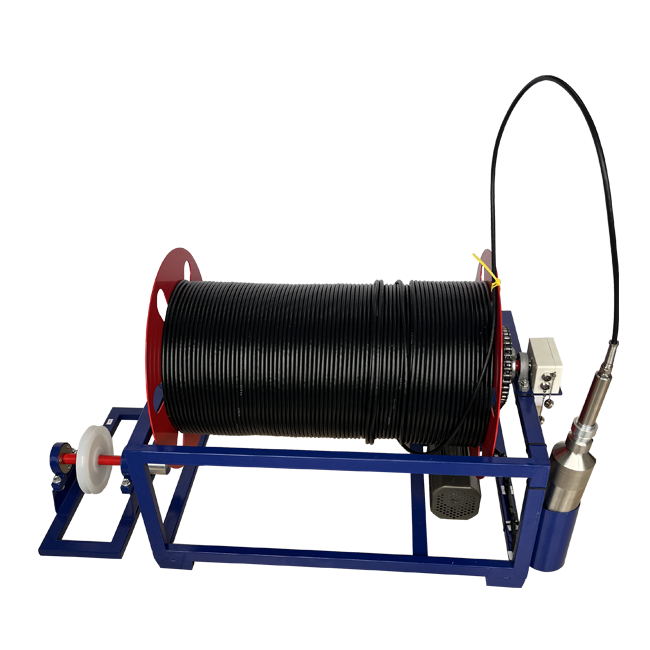

6 | Cable Winch |  | Electrical winch |
Intuitive visualization: present the underground conditions clearly and at a glance.
Accurate detection: can accurately locate problem points and geological features.
Non-contact measurement: avoid interference and damage to the underground environment.
Real-time monitoring: real-time feedback, convenient for timely decision-making.
Reliable data: provide a reliable basis for engineering operations.
Efficient and convenient: quickly obtain information and improve work efficiency.
