Product Description

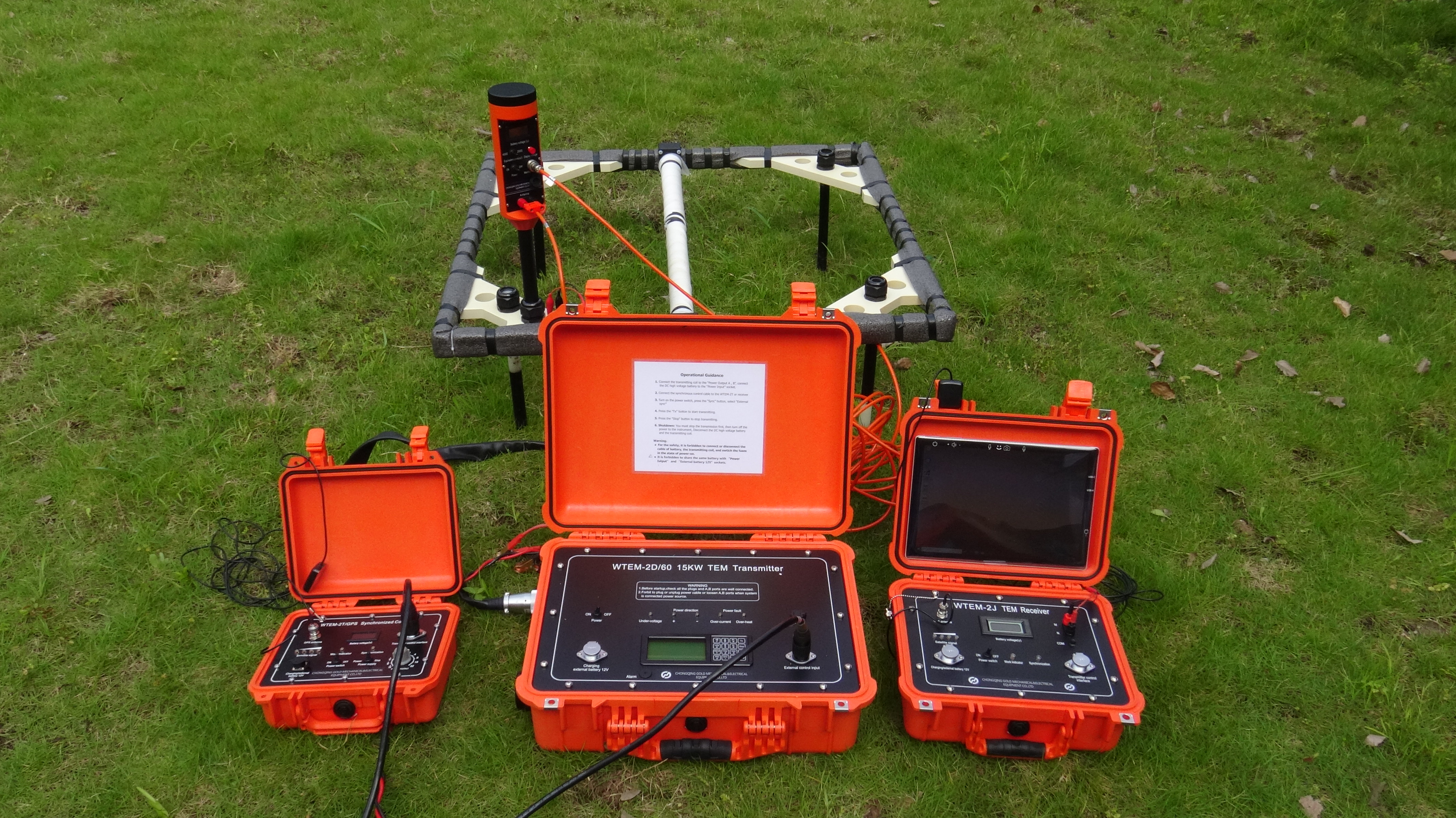

Engineering Geological Propecting System Transient Electromagnetic Method System
WTEM is newly developed product with all functions of Transient Electromagnetic method. It is full of the advantages of same products home and abroad, and characterized with large transmitter power, high reliability, strong anti-interference (sky electricity, 50 or 60 Hz industrial electricity), light and of low power cost. The WTEM-1J/GPS TEM exploration system receiver could be applied together with the large power transmitter WTEM-1D for deep exploration, also could be applied together with small power transmitter WTEM-1X for shallow exploration.
1. Product advantages:
The WTEM transient electromagnetic method system has high transmission power and fast shutdown function, which extends its shallow detection range. The shutdown time measurement function can provide the interpretation software with accurate actual transmitter shutdown time, improving the software interpretation accuracy. The system adopts advanced synchronization methods, including cable synchronization and GPS synchronization, to ensure high accuracy and stability of data acquisition. At the same time, it has super anti-interference ability and can obtain high-quality data under complex geological conditions.
2.Main features:
The WTEM transient electromagnetic method system receiver can be used with transmitters of different powers to complete deep or shallow exploration tasks. This flexibility enables it to adapt to different geological problems. Its carefully designed receiver and power electronic circuits, reasonable heat dissipation measures, solid mechanical structure and imported fully sealed instrument box ensure the high reliability and low power consumption of the whole machine. The system also supports wireless remote control operation, making it more convenient and quick to set parameters, start measurement, and transmit and display measurement results on site.
3.Applicable fields:
WTEM transient electromagnetic method system is mainly used for exploration of metal mines, coal fields, oil and gas fields, geothermal, hydrological engineering geology, etc. It can reasonably select devices for different geological problems to complete geological tasks such as rapid survey, stereo mapping, deep prospecting and shallow depth sounding. In railway construction, the exploration of long and deep buried tunnels requires the detection of geological bodies at various depths, and the WTEM transient electromagnetic method system has also shown its application potential.
4.Technical specification:
WTEM-2J/ GPS TEM Exploration system receiver
| |
Channel number | 1 |
Pre-amplifier gain | 8, 32 times |
Main amplifier gain | 1, 2, 4, 8, 16, 32, 64, 128 times |
Band pass | 0~50kHz(liner phased filter), full band 0~400kHz |
A/D bit | 16bit |
The minimum sample interval | 1 μs |
Crystal oscillation total error | ≤5*10-9 |
Trace number | 50 |
Stack number | 1~9999 |
Synchronization mode | (1) Cable synchronization (2)GPS synchronization |
Power supply | Built-in 12V rechargeable battery(support outside power), working time≥10 hours |
Working temperature | -10℃~+50℃ |
WTEM-1D 10KW Large power transmitter | |
Transmitting voltage | 200V |
Transmitting current | 50A |
Current measurement precision | 1% |
Power supply frequencies | 0.0625Hz, 0.125Hz, 0.25Hz, 0.5Hz, 1Hz, 2Hz, 4Hz, 8Hz, 16Hz, 32Hz |
Transmitting power voltage display | Liquid crystal display unit V, display resolution 0.1V |
Working temperature | -10℃~+50℃ |
5.Certificate
6.Company Profile
7.Shipping And Delivery
8.FAQ:
1Q:Can you accept ODM & OEM service ?
A:We professional provide OEM &ODM service for pressure transducer.
2Q:Could I get samples?
A:No,only a charged sample provided for big order.
3Q:How about the quality of the products?
A:We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4Q:How is the price?
A:As we believe the quality is the most important,we will provide the best quality water level meter we can with reasonable price.
5Q:Could you provide me the shortest lead time?
A:We have enough stock to deliver .
