Introduction To The Differences between Portable Polarization Nodes And Conventional IP Meter And Its Applications

Views: 19     Author: Micheal Wang     Publish Time: 2024-09-24      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Brief Introduction of GEOIP-4 Advance Portable Induced Polarization Nodes

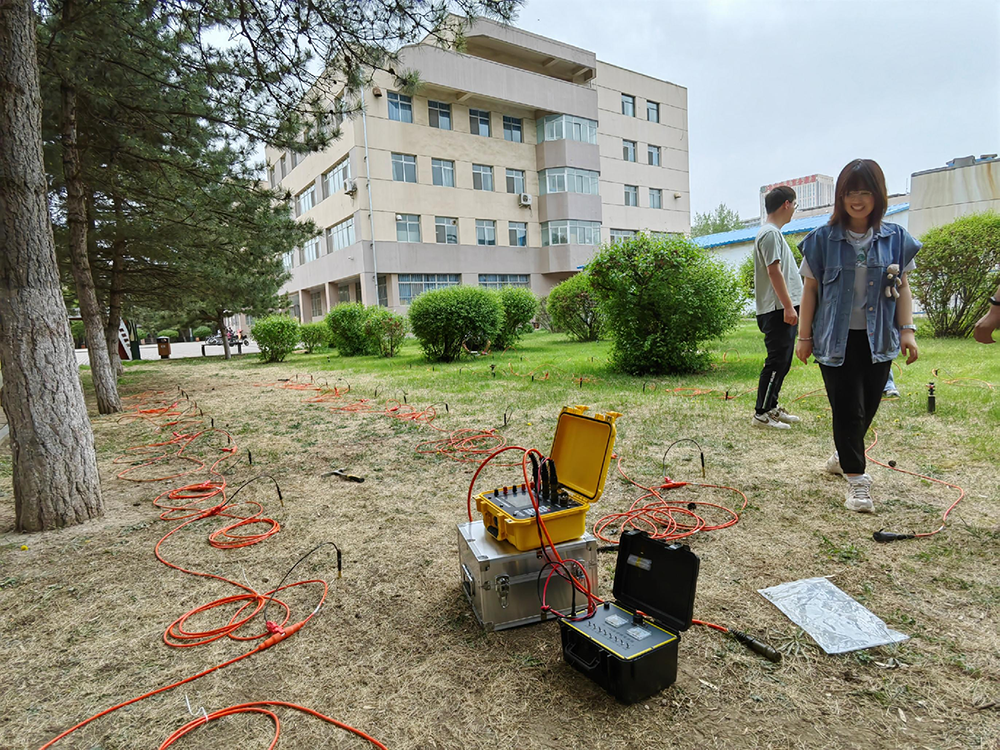

  Hi, dear fellow geophysicists and geophysical service companies. Are you still using traditional cable based IP meter? As we all know, induced polarization is the most effective and economical method for metal ore minerals exploration. But at the same time, we ignore its shortages. So many cables need to be installed before measurement and too much steps need to be taken each time. Time and labor cost is high.

3DIP 547812

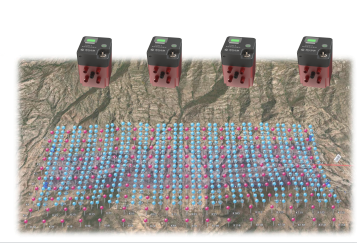

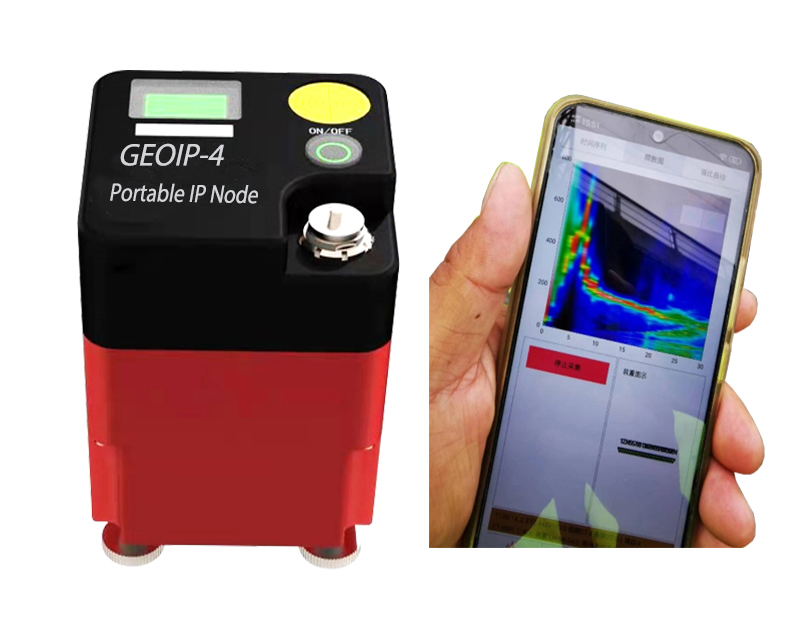

  With the aim of simplifying operation and saving labor & time costs, we developed GEOIP-4 wireless IP nodes. It not only has the function of ladder and profile sounding in the conventional IP meter , but also realizes 2D rapid line sweep and 3D rapid surface sweep.

3DIP 296656 seismic node2dead

Compared with conventional IP meter, how does GEOIP-4 work?

  GEOIP-4 is an integrited IP data acquisation station and each node play the same role like coventional IP meter electrodes. But its specing and layout are more flexible and versatile.

3DIP 1084143DIP 17845

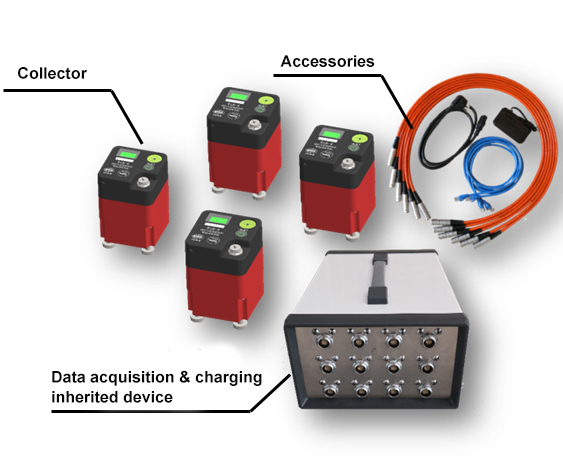

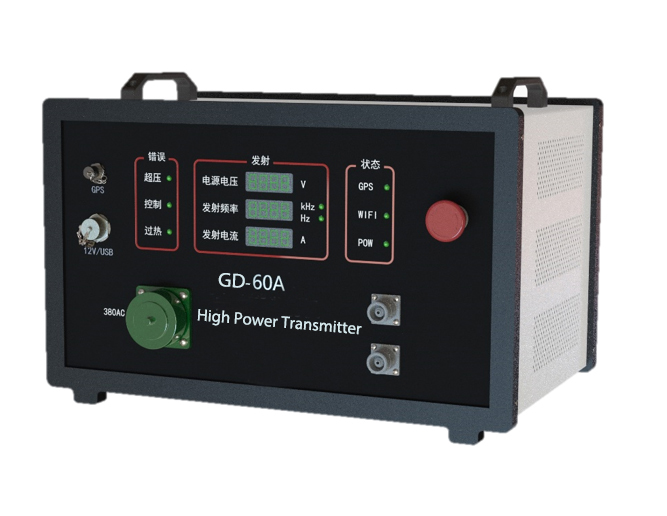

  It is tiny and lightweight, flexible layout, adapt to a variety of complex terrain in the field. Adapting with GD-60A high power electromagnetic transmitter, it can realize several nodes works at the same time. Running one transmitting electrode each time, which can not only simplify the operation, but also improve data acquisation efficiency.

                                                                                                                                                                               seismicnode 474rfs        transmitter 25hsdfd

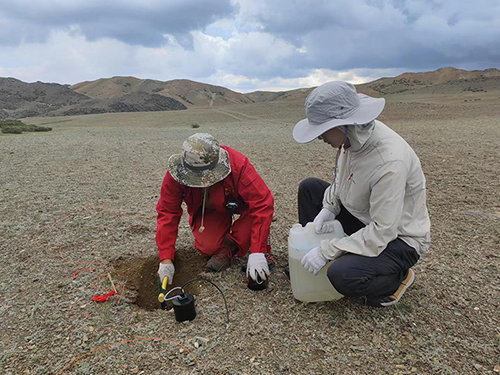

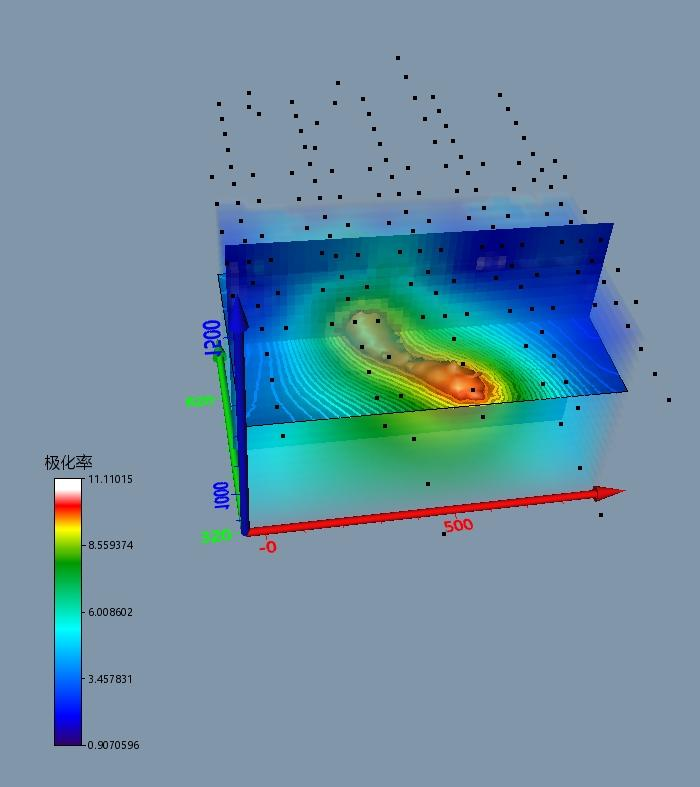

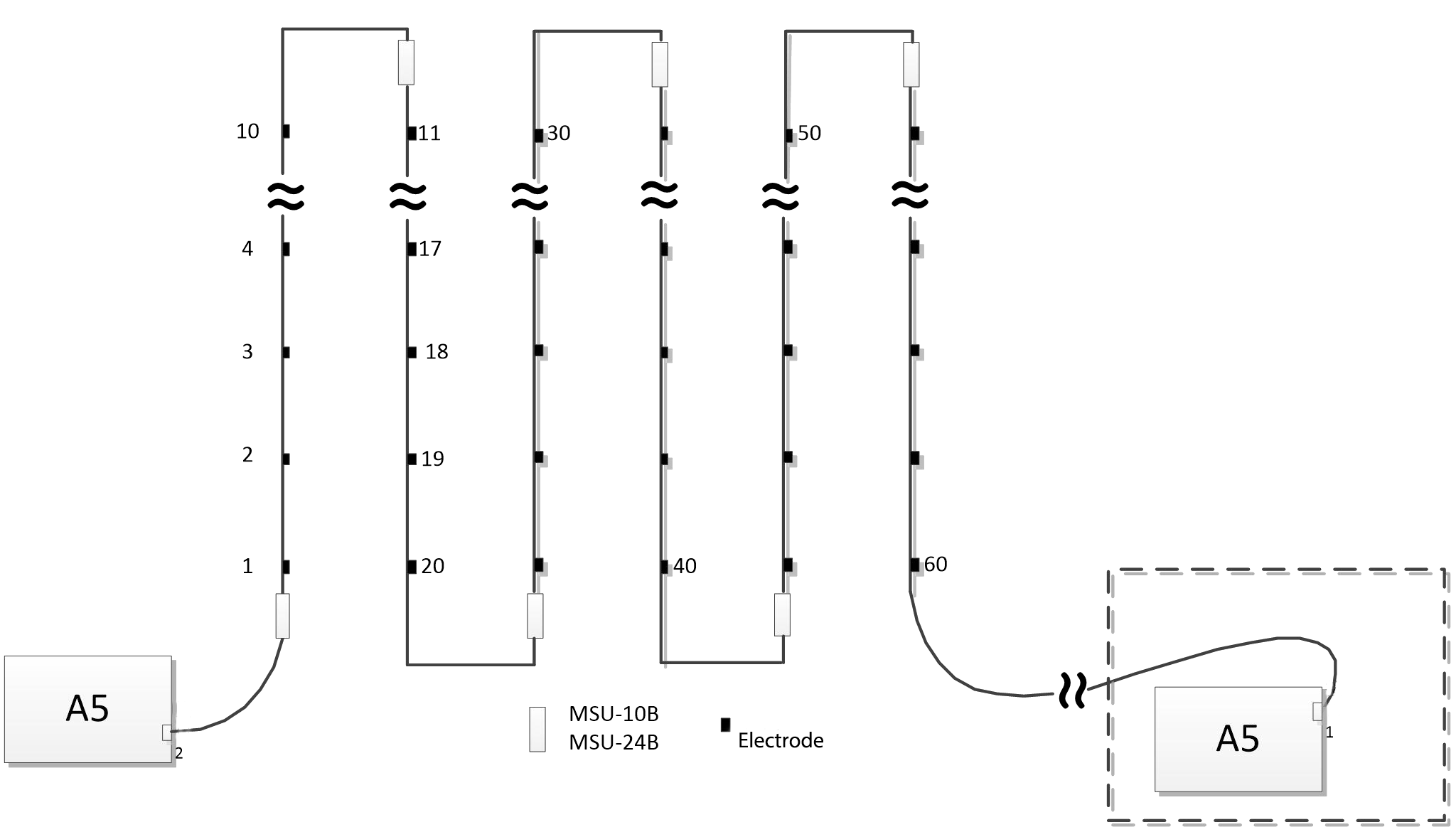

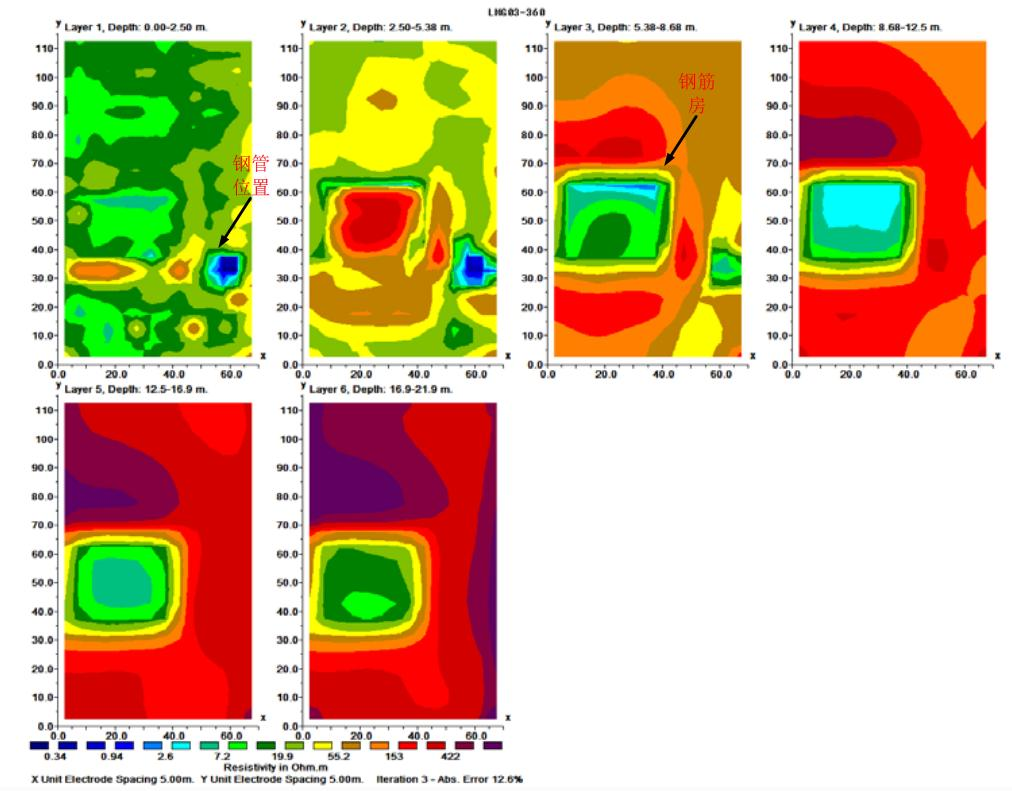

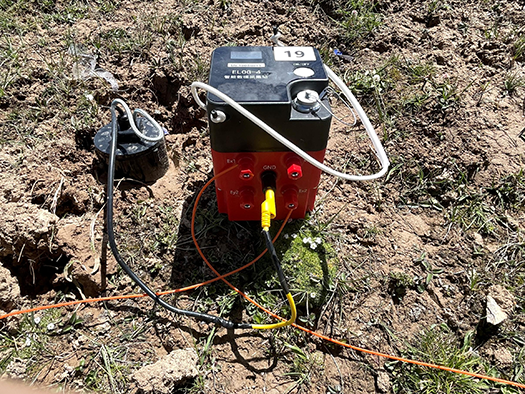

Projects

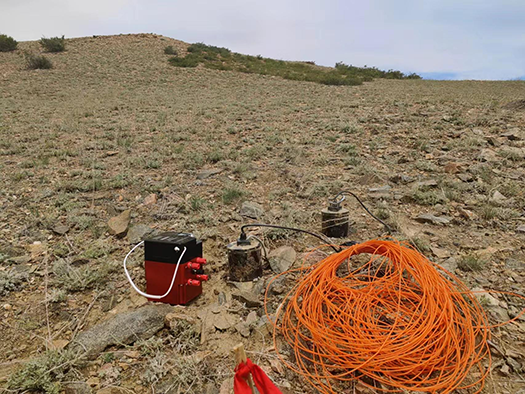

3DIP 10871 3DIP 98464

3DIP 924845 3DIP 149613

3DIP 8918452 3DIP 813964
