Product Description
Low Strain Pile Testing Device:
Portable and compact, beautiful interface.
High integration, high reliability, low noise.
Full touch operation, full Chinese prompt, on-site analysis can calculate and indicate defect location.
The sampling signal can be deleted immediately, and the sampling frequency can be adjusted manually or intelligently.
Adaptive data amplification technology, the waveform will never be distorted.
Analog automatic equalization to eliminate signal drift.
On-site analysis realizes index magnification adjustment and index magnification position adjustment.
Standard USB interface, data can be directly exported by U disk, Bluetooth data mode is optional.
Can be configured with domestic and imported acceleration sensors.
Multi-time base self-calibration function to ensure the analysis accuracy of time domain and frequency domain.
Accessories
Main accessories:

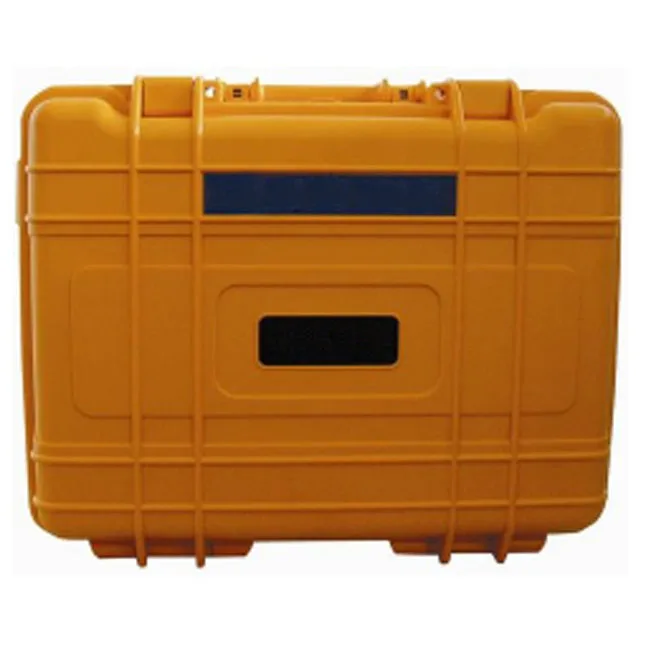

Waterproof instrument case Main engine

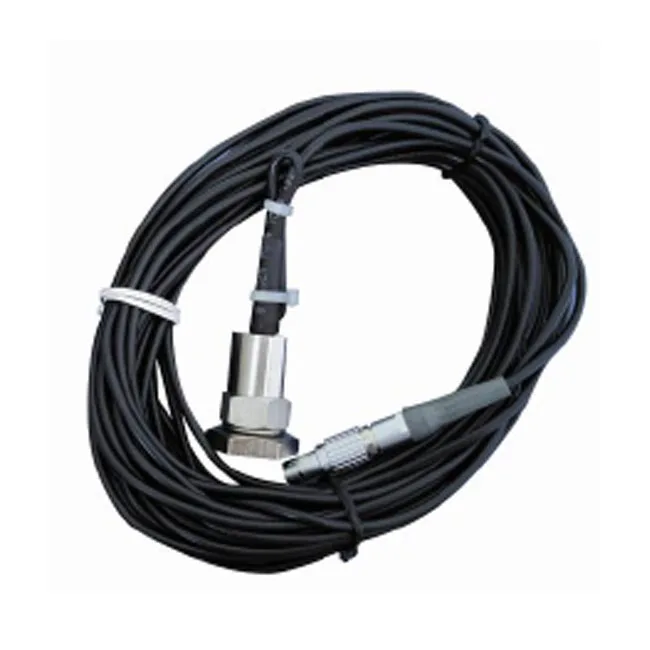

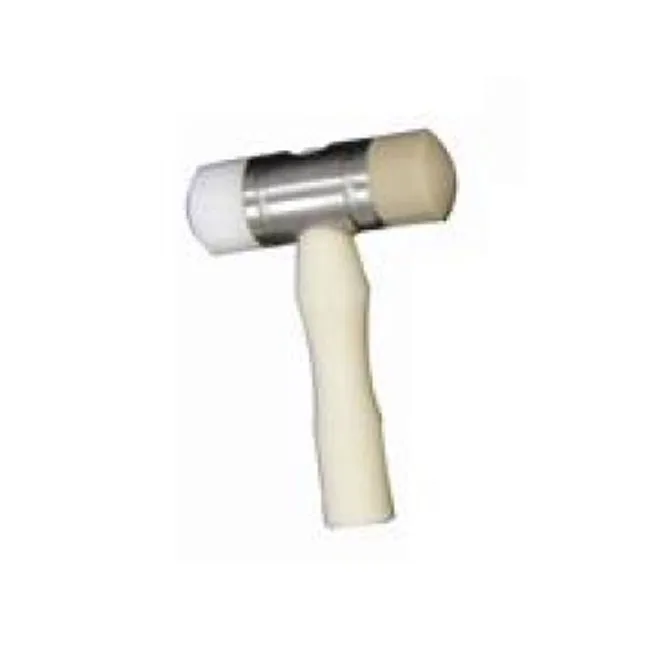

Accelerometer Hammer
software interface

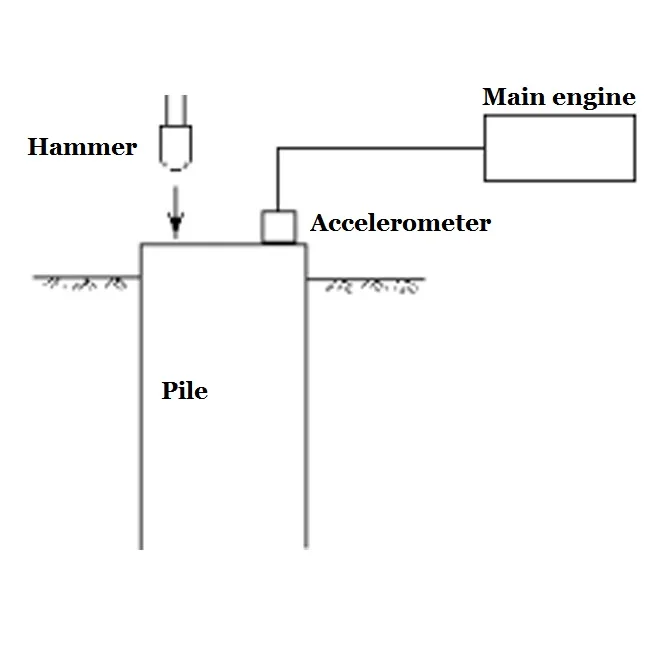

Principle

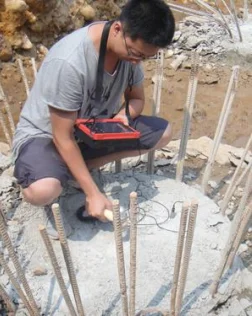

When the pile head is excited by vibration equipment such as hammer or force rod, the generated stress wave will propagate down the pile body. During the propagation process, if it encounters the wave impedance interface, the reflection and transmission of the sound wave will occur. The magnitude of the reflected and transmitted energy of the stress wave depends on the magnitude of the wave impedance of the two media. According to the wave theory, when the stress wave encounters fracture, segregation, necking and bottom expansion, the reflected wave is in phase with the initial motion phase of the incident wave because the wave impedance becomes smaller; when the stress wave encounters neck expansion and bottom expansion, the wave the impedance becomes larger, and the reflected wave is out of phase with the initial motion of the incident wave. Combined with the amplitude, wave velocity, and arrival time of reflected waves, a comprehensive judgment can be made on the integrity, degree of defect, and location of the pile.
