Product Description

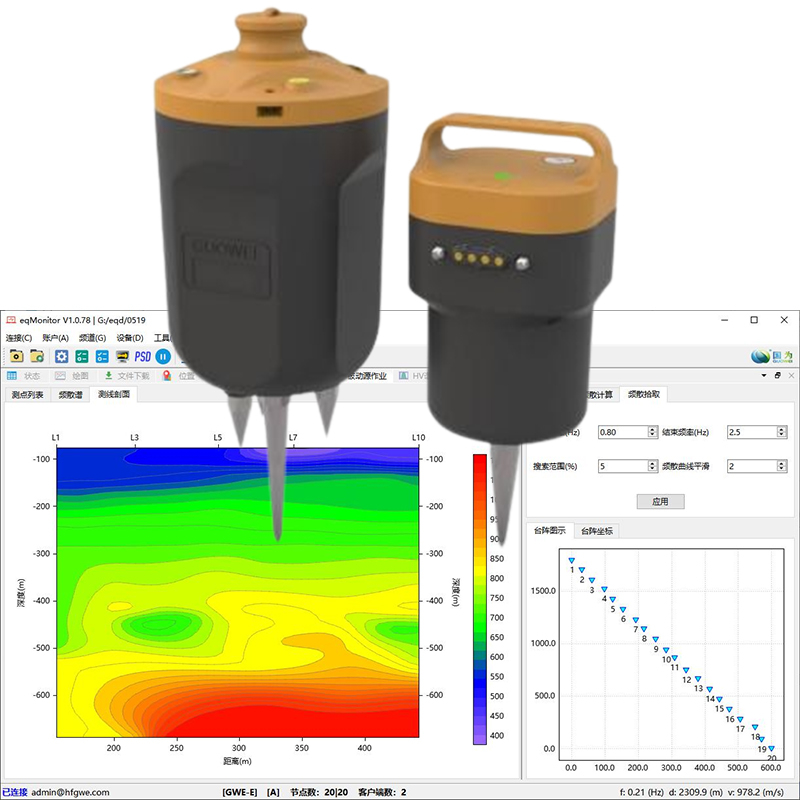

The advantages of this product include high-sensitivity three components, 4G remote real-time transmission, and an ultra-long continuous operation of 150 days in the field.
Product Features

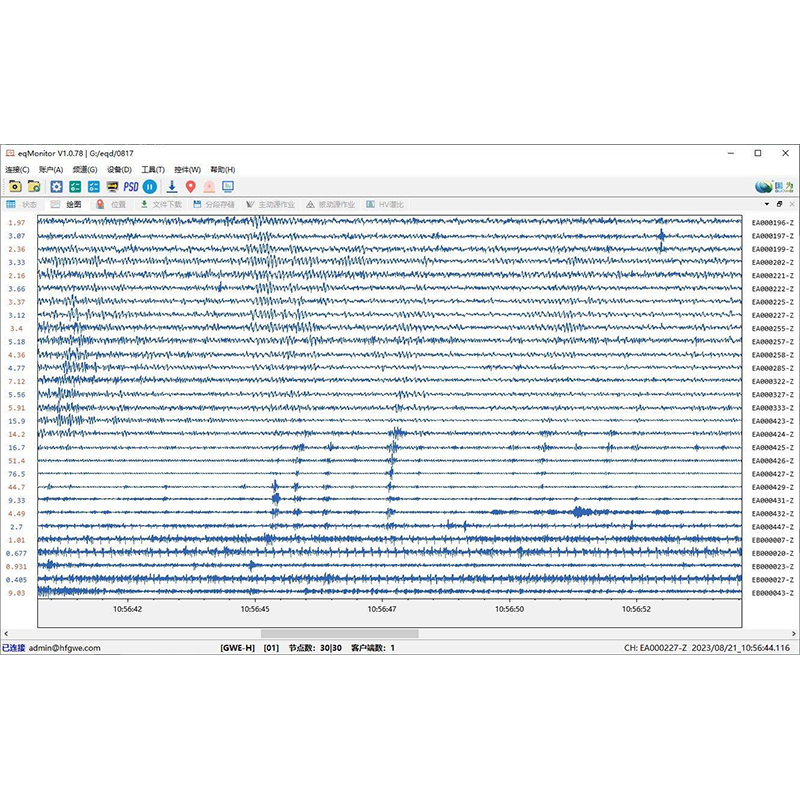

1. Seismic data is transmitted in real-time via 4G, allowing for remote intelligent configuration of operational parameters, real-time monitoring of instrument status, and map display of instrument locations, resulting in high operational efficiency.
2. Operational data can be stored and downloaded from the cloud.
3. Built-in three-component high-sensitivity 4.5Hz geophone, integrated design, compact size, and lightweight.
4. 32-bit ultra-high precision Σ-Δ ADC with ultra-low noise levels.
5. Built-in GPS and high-precision clock, capable of maintaining long-term synchronization without cumulative error.
6. Equipped with an anti-theft automatic alarm function, allowing for tracking of historical movement trajectories after theft.

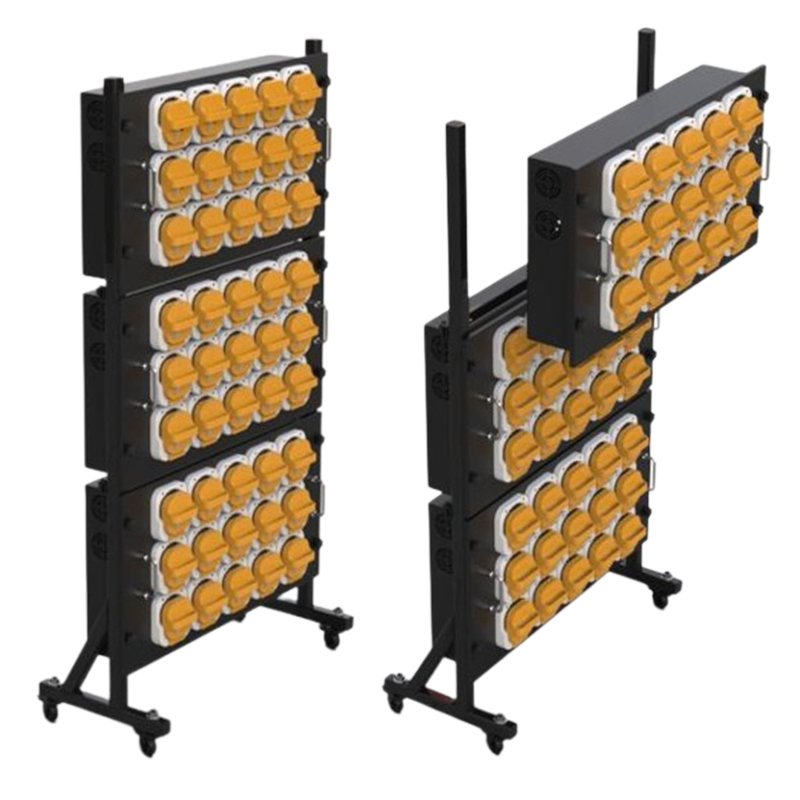

7. Utilizes an integrated charging box, enabling simultaneous charging and data export.
8. Supports external power supply.
9. Compatible with various data formats including SEG-2, SEG-Y, SEG-D, SAC, and Mini-SEED.
| Frequency | 4.5hz |
| Frequency response range | 0.15~1600Hz |
| Sensitivity | 190 V/m/s |
| Size | φ129.3mm，H211.5 mm |
| Weight | ＜2.2kg |
| Protection | IP67 |
| Temperature | -40℃~85℃ |
| Channels | 3channels |
| Accuracy | ≤1 µs |
