GYGD-IV
GOLD
Product Description
Product Description:

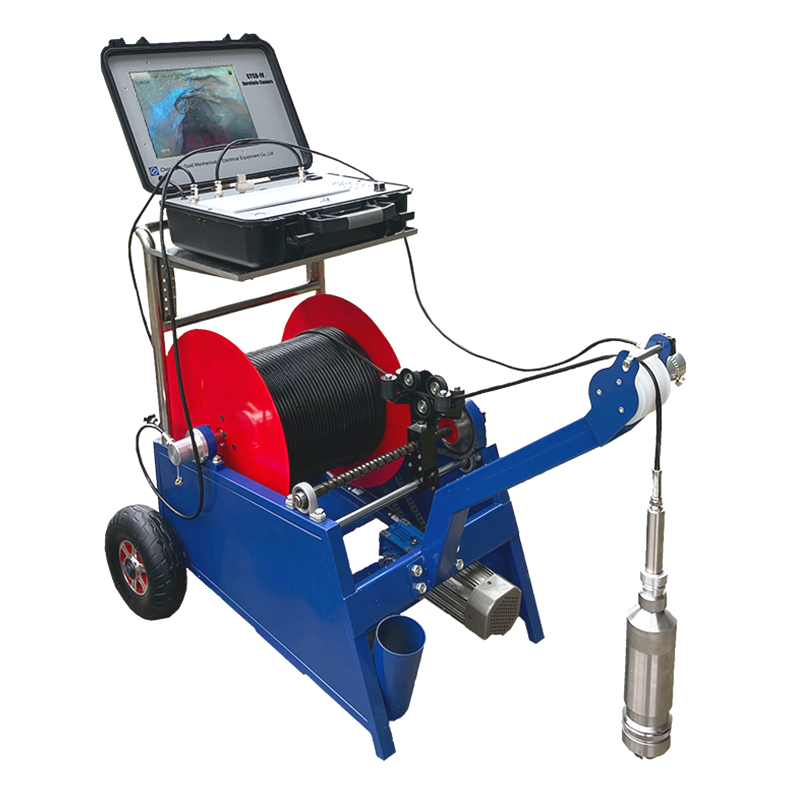

The underwater borehole camera and water well camera serve as essential tools for underwater exploration, borehole and water well drilling operations, as well as geological and geotechnical investigations in various industries. They are extensively utilized by hydrologists, geologists, mining professionals, civil engineers, and other relevant professionals.
These cameras are deployed to gain visual insights into the geological formations, rock structures, fault lines, fissures, and other significant features within drill holes, well holes, and underwater environments. They are indispensable for conducting underwater surveys, examining geological characteristics, and assessing the integrity of subterranean and underwater structures in applications such as mining, petroleum exploration, and civil engineering projects.
The following two lenses are available:
Technical Parameter:
| Hole Type | Vertical, Slant Hole |
| Sensor | Sony 1/3 Inch CCD,0.1Lux |
| LED Display | 8 Inch 4:3, 1024*768 Pixel |
| Camera | 850TVL, Automatic Focus, Manual Focus (Optional), 360 Degrees Rotation, Freely Control, Can Stay in Any Position |
| Light | 8pcs LED Lights, Bulb Luminance Adjustable |
| Depth | 0-2000m |
| Storage | SD Card/ U Disk, Standard 16G SD Card, 32G Optional |

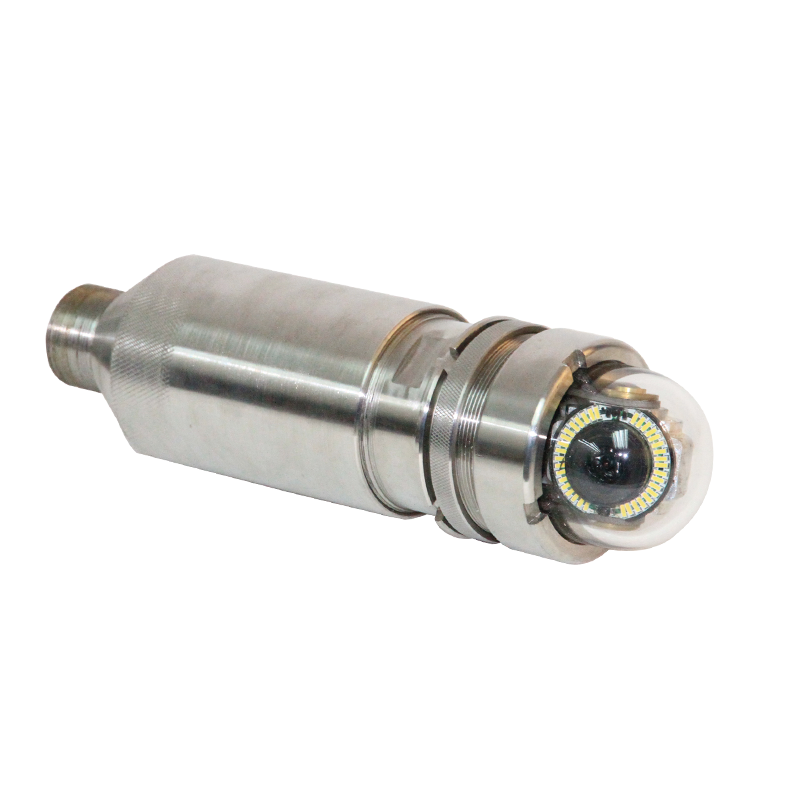

| Probe | Panoramic and Rotary Types are Changeable |
| Power | AC 220V 50Hz (DC12/ 24V Optional) |
| Cable Tensile Strength | 250KG |

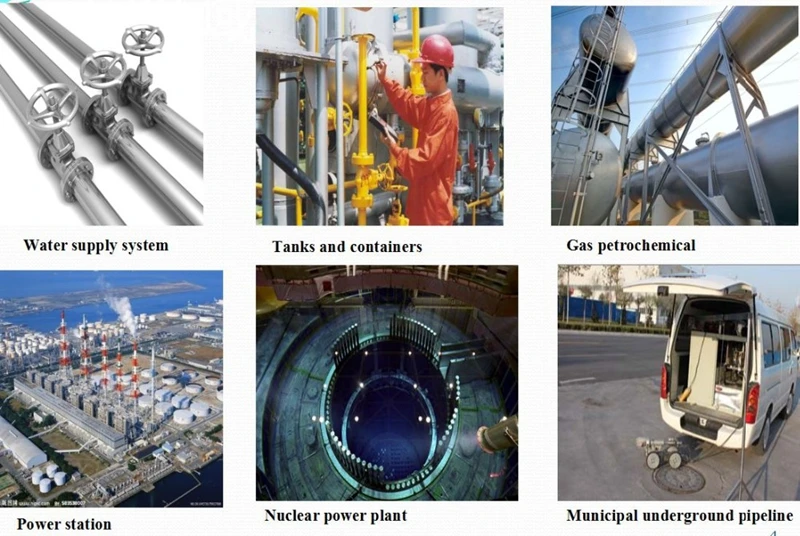

Application:
About as
About delivery
FAQ:
1. What are you doing ?
We are manufacture for geophysical equipment: such borehole camera and water level (depth) meter, DC resistivity meter, magnetic equipment, seismic equipment and etc.
2. How deep of your borehole camera test ?
Usually, our borehole camera can be used to test from 100m to 1000m.
3. What’s diameter of your borehole camera?
Our borehole camera diameter is 75mm which suitable 80mm to 300mm borehole.
4. What’s temperature of your borehole camera?
Our borehole camera is suitable for -10 to 60 centigrade degree borehole
5. Do you do customized borehole camera?
Yes, we will try best to make the borehole camera per your specification requirements: such as 1000m to 2000m borehole camera, high temperatura borehole camera, and etc.
