Product Description
WDFZ Multi-channel intelligent transmitter system high rectification power equipment
Introducation:
The new generation DC IP transmitter system is composed of WDZ-5A rectification power (contained balanced load controller) and WDFZ-5 large power intelligent transmitter. This system breaks through the conventional design mode; uses chip microcomputer for controlling, and is driven by intelligent IGBT. It has high measurement accuracy, multi-functions and high dependability. It is small and light, and can be carried conveniently. It also has the perfect function of the over-voltage, over-current, open circuit protection and personal safety protection and so on...
Technical specification:
Max transmitting power | 7.2kW, 10kW, 15kW, 20kW |
Max transmitting voltage | ±1200V |
Max transmitting current | ±6A, ±10A, ±15A, ±20A |
DC high voltage input | 1200VDC(max), 6ADC(max) |
Working temperature | -10℃~+50℃ |
Storage temperature | -20℃~+60℃ |
Dimension | 406mm*330mm*174mm |
Weight | 7.8kg |
Configuration | Transmitter, receiver, cable, electrode, balance load, voltage source rectifier |
Application:
1. It is able to complete with general digital DC IP receiver to act as a conventional IP survey system, or in association with the newly-designed.
2. WDJS series multi-channel DC IP receiver to act as a high-performance, multi-channel, multi-synchronization-option and highly efficient IP survey system.
Features:
1. The rectification power and transmitter uses detachable design, and the bottom of the rectification power box is installed with the versatile wheel, so that it is convenient to carry.
2. It can automatically save current values for late processing.
3. Chip microcomputer control, timing accurately, and high reliability.
4. Large screen display, Chinese character menu.
5. Digital display of the output voltage and current.
6. It can measure the earth resistance between the two injection current electrodes.
7. Light diode shows the function mode and the fault conditions.
8. Super protection function:
220V input power supply low-voltage protection.
Output voltage, over-voltage protection.
Balanced load open circuit display, over-current protection.
Power supply circuit, over-current protection.
9. It uses high voltage plug in connector at high voltage connecting position to improve the personal safety protection.
10. WDFZ-5A large power intelligent transmitter has not only the function of all transmitter of WDFZ-5A model transmitter, but also all the function of WDJD-3 digital DC IP equipment.
Certification

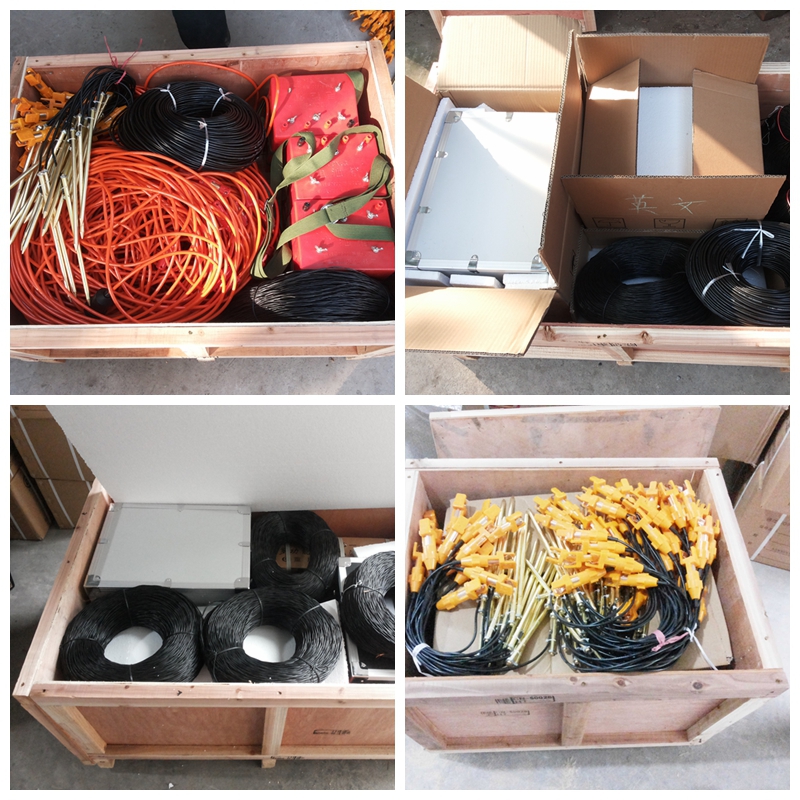

Packing and delivery
