WGMD-9
Gold
9015800090
Product Description
WGMD-9 3D Resistivity IP Tomography Equipment 2D Resistivity IP Tomography Equipment Groundwater Exploration Resistivity Meter
The system supports 16 unique electrode arrays for multi-electrode imaging, including classics like Wenner Alpha (α), Wenner Beta (β), and Wenner Gamma (γ), plus advanced options like Dipole-Dipole Roll Along, Cross-Hole Dipole, and Self-Potential MN. Whether you’re a newbie or a pro, there’s an array for every challenge!
a) Basic Resistivity & IP Surveys: Perfect for simple setups! Just pair it with one or two current electrodes, potential electrodes, connecting wires, and a power source. Easy peasy! (Check Section Three and Four for details).
b) 2D Multi-electrode Imaging: Team up with the WDZJ-4 Multi-electrode Converter, power source, electrodes, and cables for advanced 2D imaging. Dive into Section Six to learn more!
c) Next-Level Imaging: Go big with 2D/3D Resistivity Imaging and 2D IP Imaging using 10-take-out intelligent cables, electrodes, and a power source. Sections Seven, Nine, and Ten have all the juicy details.
Portable & Flexible: Take it anywhere, set it up in minutes!
Open Measuring Process: Customize your workflow like a boss.
High Power & Precision: Big current range, tiny errors.
Bluetooth Magic: Control it wirelessly—no strings attached!
Expandable: Add more electrodes or cables as your needs grow.
Anti-Interference Champ: Works flawlessly even in noisy environments.
Smart Receiving Unit: Captures data like a pro.
Earth Resistance Check: Because grounding matters!
Flexible Control Options: Choose how you want to run the show.
Configuration：
| Configuration/Function | Mainframe | Switch | Cable and Electrode |

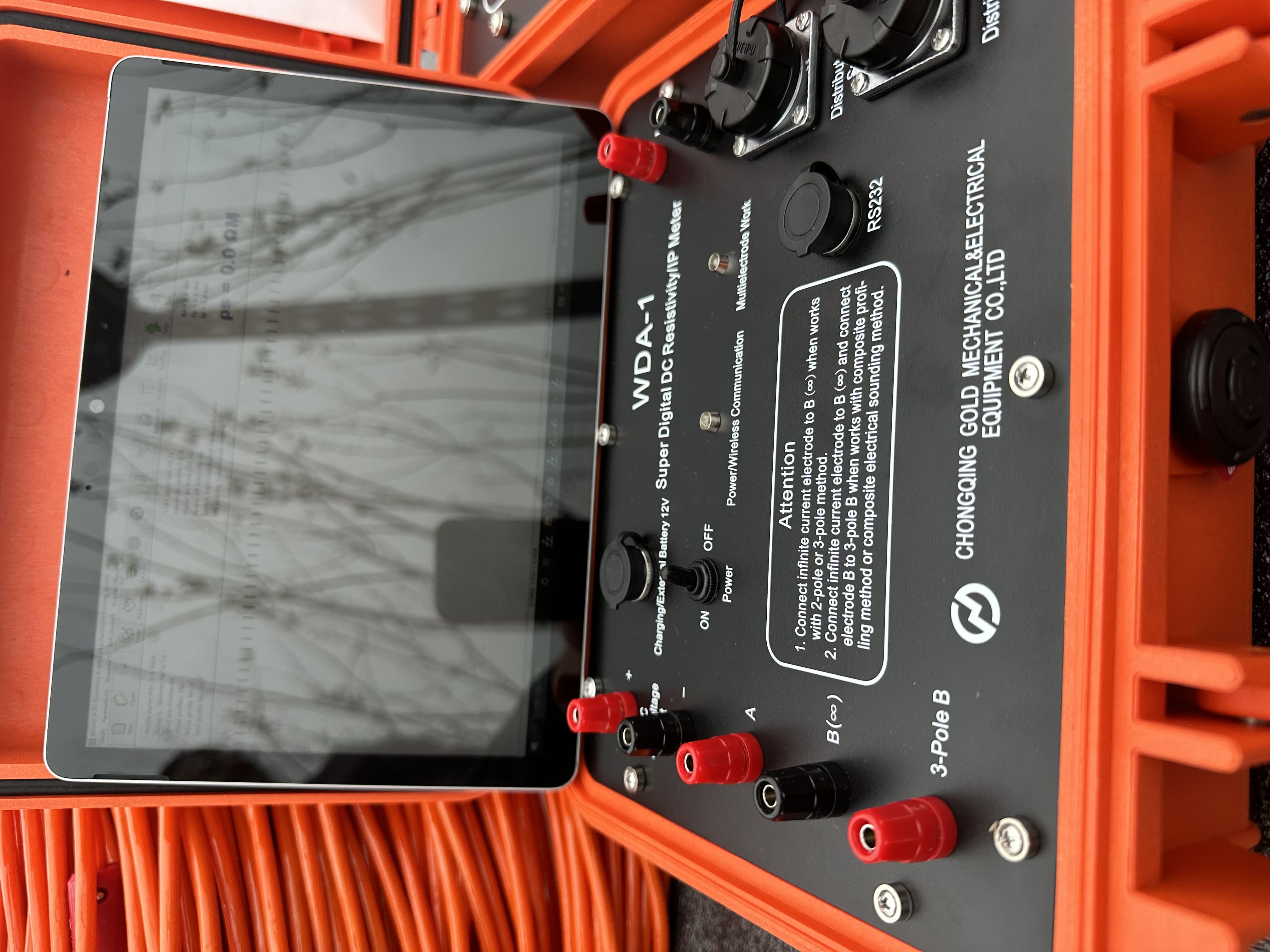

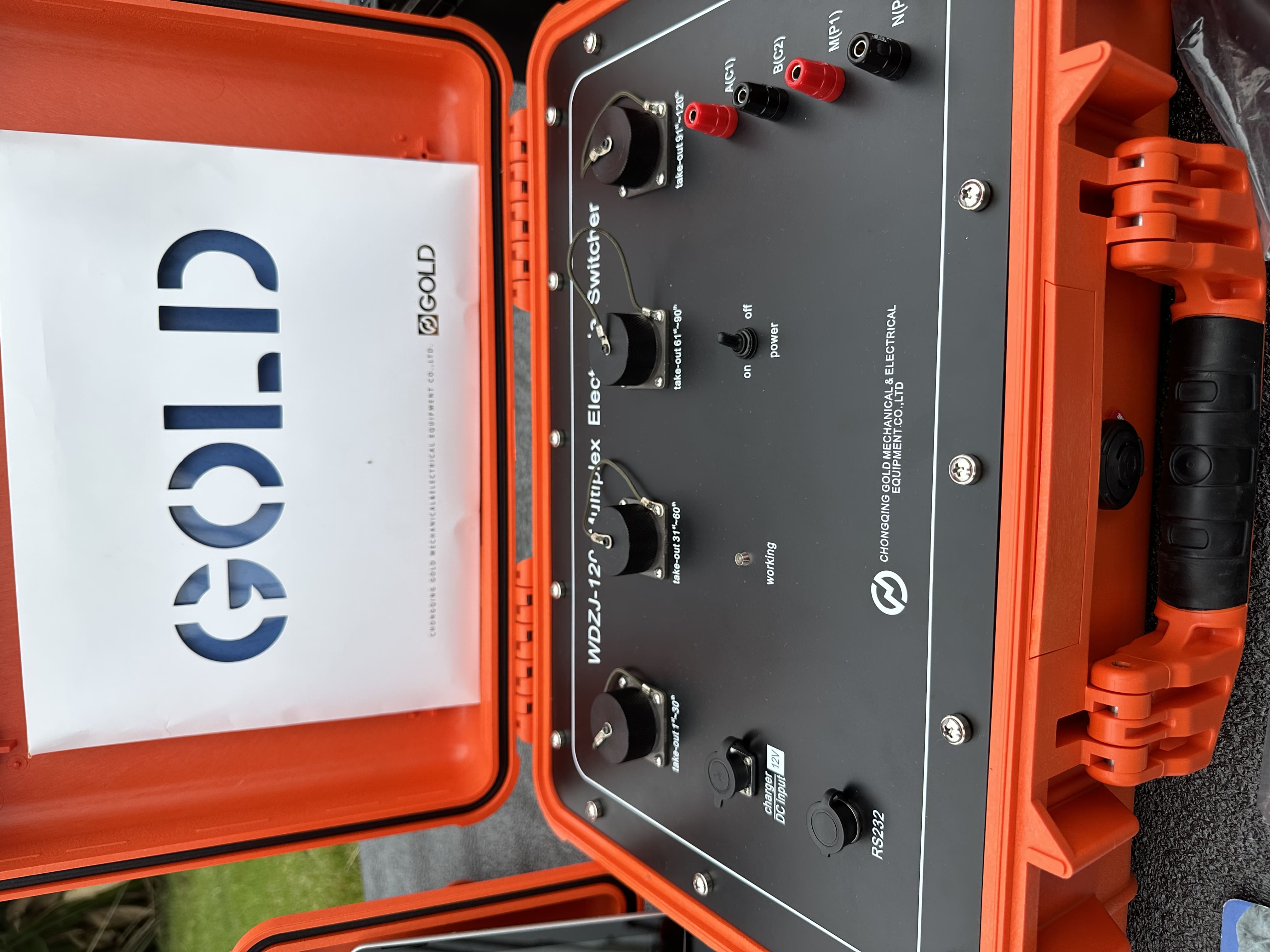

| 2D RES Imaging | WDA-1 | WDZJ-4 or WDZJ-120 | Central |
| Intelligent 2D/3D Res Imaging | WDA-1 | No | Intelligent |
| Intelligent 2D IP Imaging | WDA-1 | No | Intelligent |
