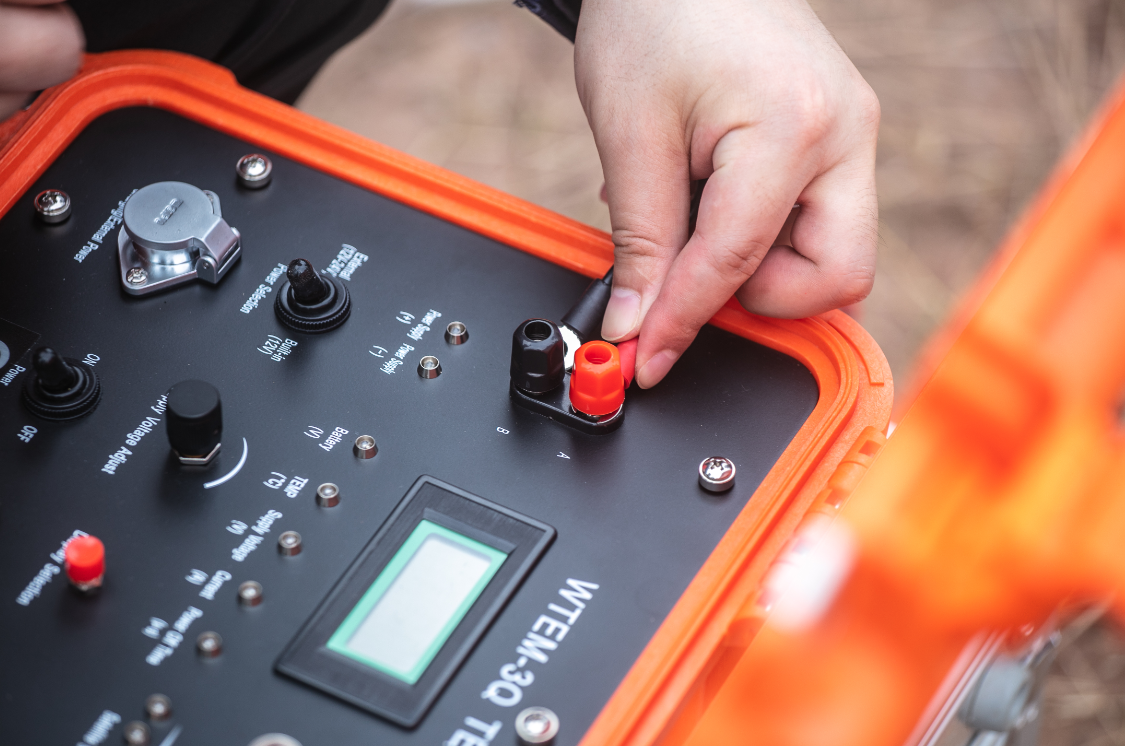

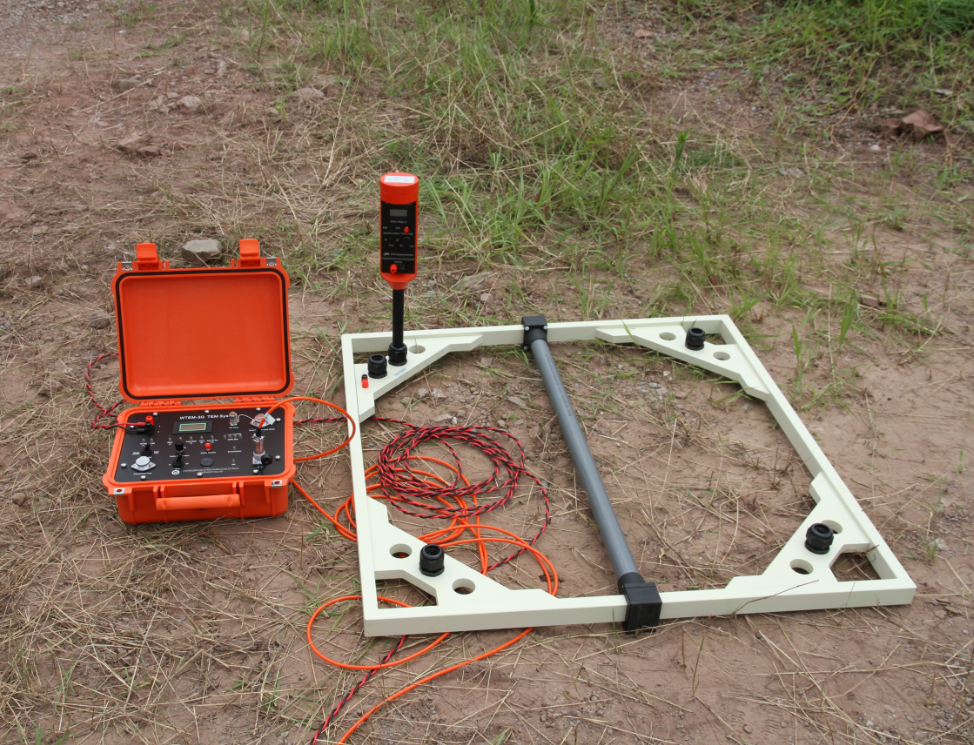

WTEM-3Q Shallow Transient Electromagnetic Equipment TEM Geophysical Equipment

WTEM-3Q Shallow Transient Electromagnetic Equipment TEM Geophysical Equipment

Transient Electromagnetic (TEM) equipment is used for geophysical exploration, particularly for locating subsurface minerals, hydrocarbons, and groundwater. TEM equipment generates an electromagnetic pulse that travels through the ground and interacts with the electrical conductivity of the subsurface. The response of the subsurface is recorded by the equipment and analyzed to create a map of the subsurface electrical conductivity, which can help identify the location and properties of the target resource.

Some features of TEM equipment:

1. Pulse generation: TEM equipment generates a short, high-intensity electromagnetic pulse that is transmitted into the ground.

2. Receiver: The equipment has a receiver that measures the response of the subsurface to the transmitted pulse.

3. Data acquisition: TEM equipment acquires data in real-time, allowing the operator to adjust the parameters of the survey on the fly.

4. Signal processing: The recorded data is processed and analyzed to create a map of the subsurface conductivity.

5. Display: TEM equipment provides a visual display of the acquired data, allowing the operator to interpret the results in real-time.

6. Versatility: TEM equipment can be used in a variety of geological environments, including sedimentary basins, volcanic terrains, and crystalline rocks.

7. Depth penetration: The depth of penetration of the TEM pulse depends on the conductivity of the subsurface, but can typically reach several hundred meters.

8. Non-invasive: TEM equipment is a non-invasive method of exploration that does not require drilling or excavation, making it environmentally friendly and cost-effective.




Technical Sheet
