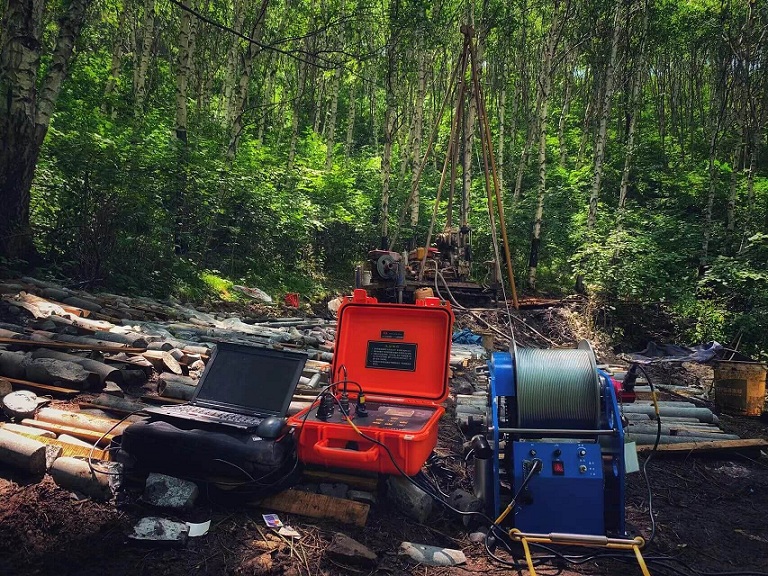

GDC-1 resistivity logging tool is an instrument used to measure the apparent Resistivity of drilled rock formations. The surface instrument is connected to the underground electrode system and use PC to measure parameters of apparent resistivity and natural potential.

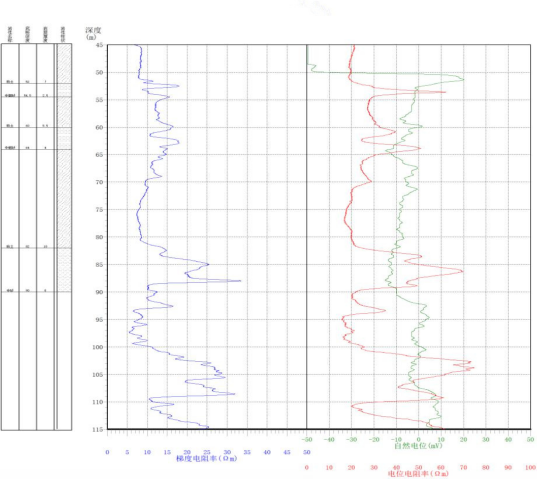

There are two voltage measurement channels for apparent resistivity measurement, and two apparent resistivity curves (gradient + potential) can be recorded simultaneously.

Main Specification for Borehole Resistivity Logging Tool

1. Power: AC 220V ± 20%, 50Hz, 20W

2. Temperature: -20 ℃ ~ + 40 ℃, humidity≤90%

3. AB power supply: 6 ~ 60V, 0 ~ 200mA, AC square wave.

4. Applicable electrode system: A1.6M 0.4N

5. Measuring range of apparent resistivity: 1-2000Ωm

6. Measurement accuracy of apparent resistivity: 1% (scale)

7. Natural potential measurement range: ± 1200mv

8. Natural potential measurement accuracy: 1%

9. Signal output: USB interface

10. Depth measurement: 0 ～ 9999.99 meters

11. Depth measurement accuracy: better than 0.1%

12. Speed measurement range: 0 ～ 9999m / h

13. Speed measurement accuracy: better than 5%
