Technical Specifications and Capabilities

• Three-Component Seismometer: Measures ground motion in three orthogonal directions (vertical, north-south, and east-west).

• High Dynamic Range (150dB): Ensures accurate data capture across a wide amplitude range.

• Low Equivalent Input Noise (0.16μV): Enables detection of even the smallest seismic signals.

• Built-In GPS and BDS: Provides precise timing and positioning for synchronized data collection.

• Expandable Storage (up to 128GB): Supports long-term data logging and wireless data transfer.

Applications in Seismology and Geotechnical Studies

1. Earthquake Monitoring: Real-time detection and analysis of seismic waves to improve early warning systems.

2. Urban Underground Surveys: Mapping subsurface structures to assess construction site suitability.

3. Geothermal and Mineral Exploration: Identifying potential energy and resource reserves through high-resolution seismic imaging.

Deployment and Operation

The GD-3C Node Seismometer is designed for flexible deployment. Each node consists of a three-component seismometer, a data storage module, and a power supply. Nodes can be buried underground or affixed to the surface using stakes or adhesives. Data is collected and transmitted wirelessly to a central station for analysis.

Optimizing Data Collection

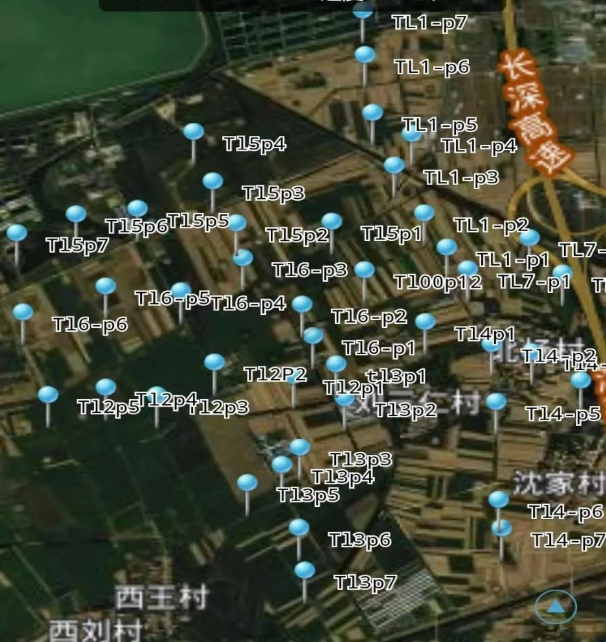

• Dense Node Networks: Deploying multiple nodes enhances spatial coverage and provides detailed 3D monitoring of seismic events.

• Precise Timing: The built-in GPS ensures synchronization across all nodes, critical for accurate data analysis.
