What is wireline well logging cable?

The wireline well logging cable is mainly used for well logging, perforation, core taking and other operations of various water well oil and gas wells, it also named also load bearable detecting cable. The connection line between the ground system and the underground instrument is used as the link between the ground system and the underground instrument.

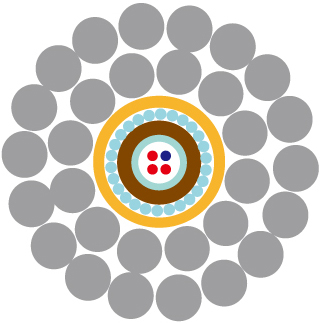

Construction:

Copper Construction:    6×0.20+1×0.21 mm       6×0.0078+1×0.0082''

Insulation PP : 0.19 mm          0.00748''

Protection: 3.00 mm                 0.118''

Armor: （Inner） 18×0.47 mm(324N)       12×0.0185''(72.8lbs)

             （Outer） 18×0.64 mm(601N)      18×0.0251''(135lbs)

Physical:

Cable Diameter: 4.70mm±0.10mm             0.18″±0.0039″  (Optional for 5.6mm,8mm and 11.8mm)

Cable Weight in Air: 85 kg/km                57.4 lbs/kft

Temp Rating: 150 ℃ 300 ℉

Mechanical:

Cable Breaking Strength: 13 kN               2900 lbs

Minimum Shave Diameter: 260 mm               10.5″

Cable Stretch Coefficient: 4.78 m/km/5kN     4.25 ft/kft/klbs

Electrical:

Voltage Rating: 200 VDC      200 VDC

Insulation Resistance: 500 MΩ·km     1500 MΩ·kft

Resistance Typical: 84.3 Ω/km         25.6Ω/kft

Capacitance @ 1 kHz: 190 pf/m      58 pf/ft
