GDP-3D Small-bore Digital Compass inclinometer Borehole Inclinometer for Dip and Azimuth

Share to:

GDP-3D Small-bore Digital Compass inclinometer Borehole Inclinometer for Dip and Azimuth

GDP-3D Digital Compass inclinometer is used to measure Dip and Azimuth for drilling borehole. It work to make risk-informed decisions based on real-time, high-quality data.
The digital compass inclinometer is designed and made for inclination measurement and direction control during engineering drilling, exploration drilling and directional drilling.

Availability:

Quantity:



Inquire Add to Basket

Model:
GDP-3D Digital Compass inclinometer
Brand:
GOLD

Product Description

Product Description

GDP-3D Small-bore Digital Compass inclinometer Borehole Inclinometer for Dip and Azimuth

Digital Compass inclinometer for Dip and Azimuth (2)

Purpose:

The digital compass inclinometer is designed and made for inclination measurement and direction control during engineering drilling, exploration drilling and directional drilling. Combines sensor, power supply, data processing system, and other controlling unit together, it can independently determine dip angle and azimuth angle of borehole at multi-points. No cable is needed. No mechanical moving parts. It is reliable and with high performance price ratio. It has been widely used in engineering, hydrology, oil field, coal field, and geology.

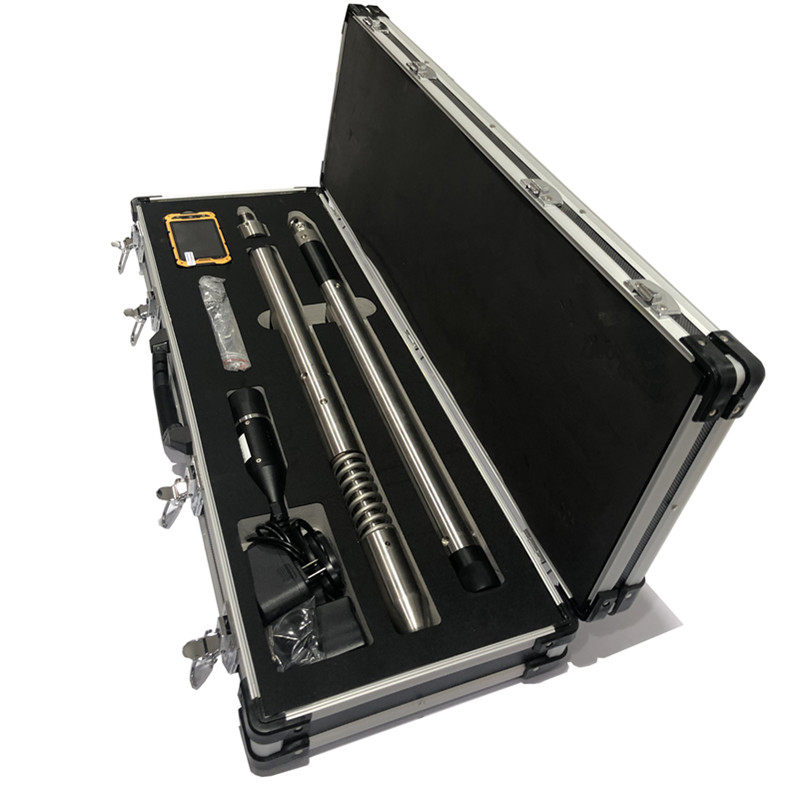

Digital Compass inclinometer for Dip and Azimuth (3)

Main characteristics:

1. Measurement depth: ≤1500 m;

2. Measurement range and error:

(1) Dip angle: 0～50°; ±0.2°;

(2) Azimuth angle: 0～360°;

When dip angle is at 1～3°, its error is ±5.0°;

When dip angle is at 3～50°, its error is ±3.0°;

3. Measurement mode: at fixed points;

4. Delay time: 1～180 min;

5. Time interval between measurement points: 1～60 min;

6. Measurement points: 1～100;

7. Data storage: 100 groups (Total numbers of measurement points saved is 1000);

8. Power supply: built in battery to provide power; it can run 32 hours after been charged;

9. Inclinometer probe: φ40mm×1320mm;

10. Ambient temperature: 0℃～55℃;

GDP-3D Small-bore Digital Compass inclinometer Borehole Inclinometer for Dip and Azimuth
