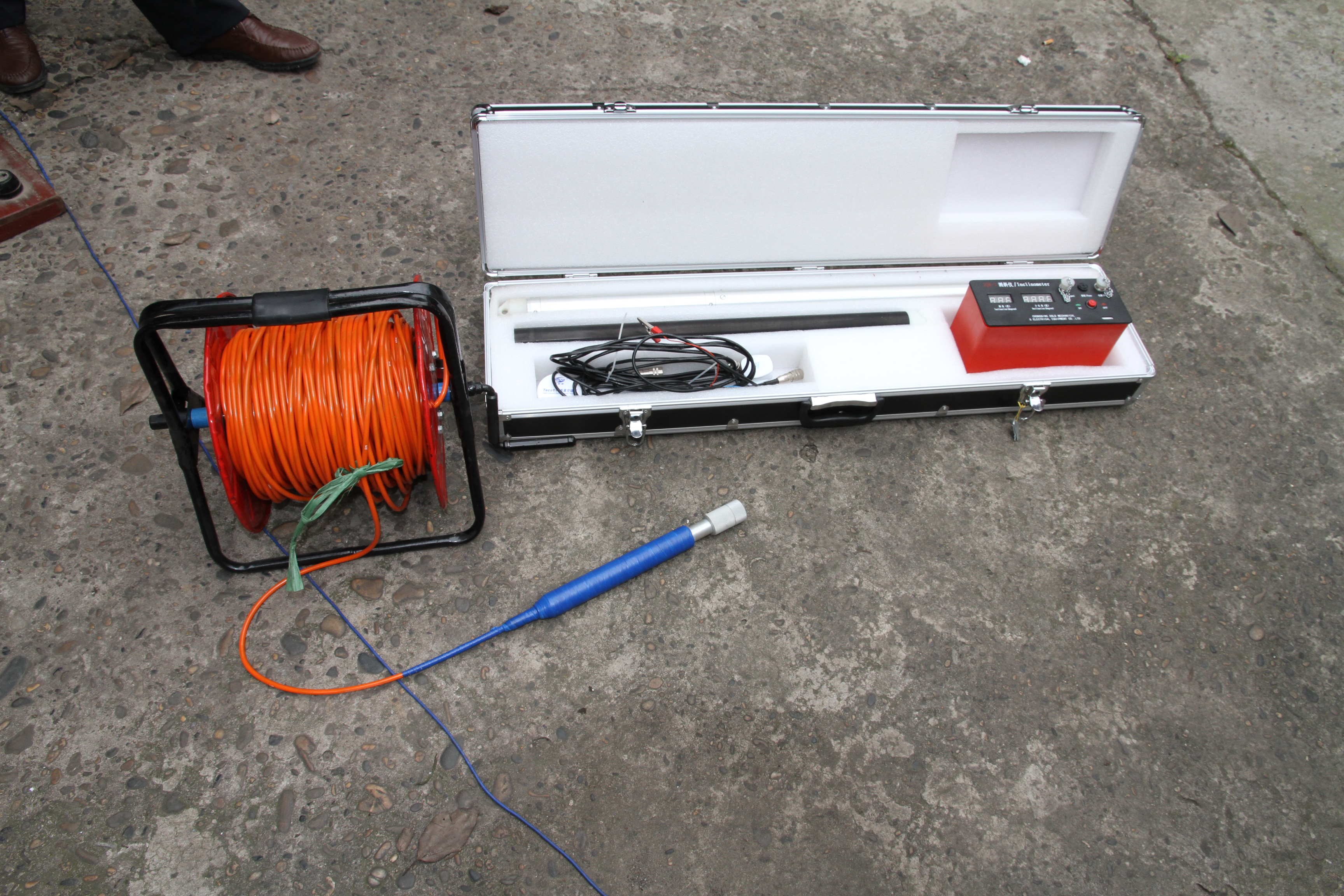

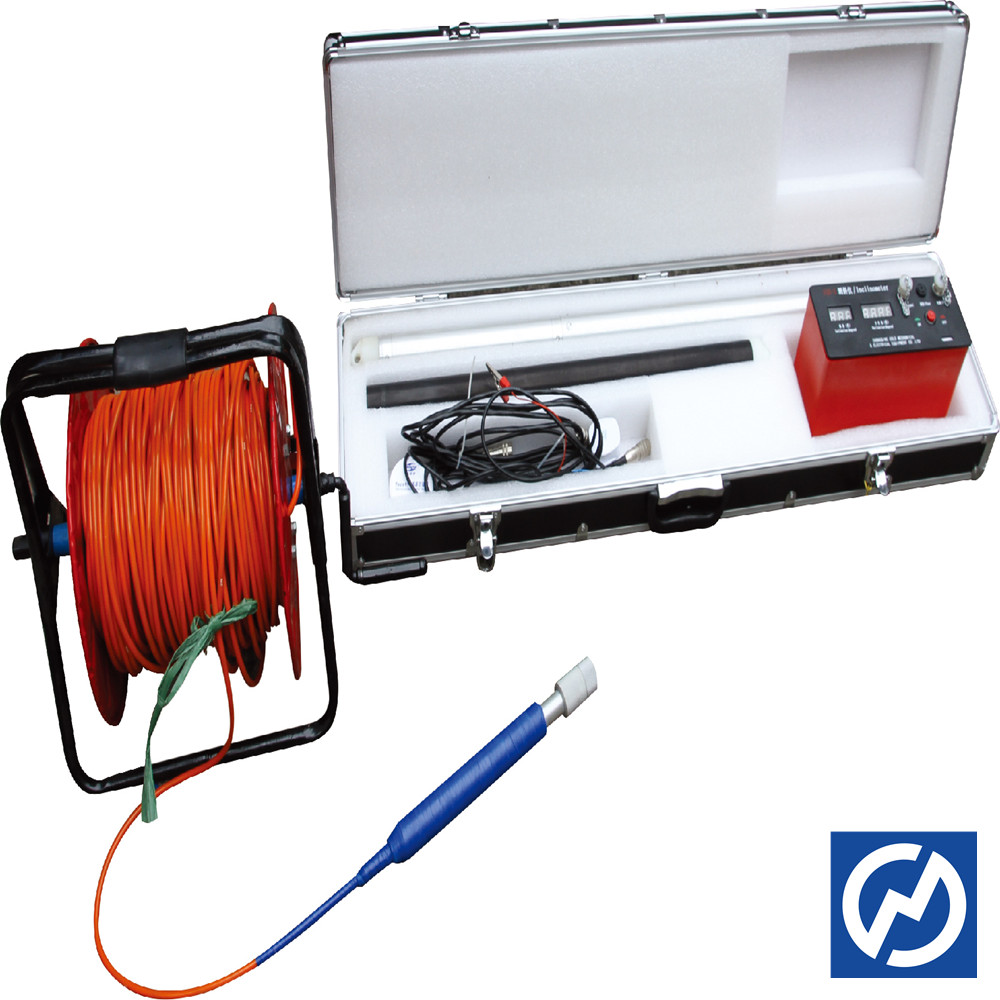

JQX-2 Portable Digital Inclinometer Borehole Inclinometer

Main Applications and Features

Digital inclinometer is a new high-precision inclinometer system which consists of ground instrument, probe, cable and other components. It is widely used in measurement of vertex and azimuth for various types of geological drilling.

• Widely used in measurement of vertex and azimuth for various types of geological drilling.

• Direct-reading of vertex and azimuth

• Digita display, point measurement or continuous measurement

• Simple, reliable operation

Main Technical Specifications

• Vertex Coverage: 0~60°

• Vertex Accuracy: ≤ 0.1°

• Azimuth Coverage: 0~360°

• Azimuth Accuracy: ±4° (Vertex ≥ 3°), ±6° (2° ≤ Vertex ≤ 3°)

• Working Temperature: 0~85 ℃

• Probe Outline Dimension: φ42×1000 mm

• Ground Instrument Dimension: 240×95×140mm

• Probe Weight: 2 Kg (weighing bar 5 Kg)

• Probe Downhole Length: ≤1000
