Panoramic Camera Probe

Borehole camera is a new logging technology, which can visually monitor the status of downhole and underwater. The camera housing is made of stainless steel, and the camera glass cover is resistant to high pressure. Therefore, the camera can reach depths of more than 2000 meters in the water. Each camera has high brightness LEDs so it can be used in any dark area.
Availability:
Quantity:
  • GYGD-III Panoramic borehole inspection camera, Well Cameras, Borehole and Downhole Inspection Systems

  • GOLD

Product Description

borehole camera overview

Borehole cameras are widely used in deep wells, water wells, downholes, rivers, large pipeline inspections and other underwater conditions.

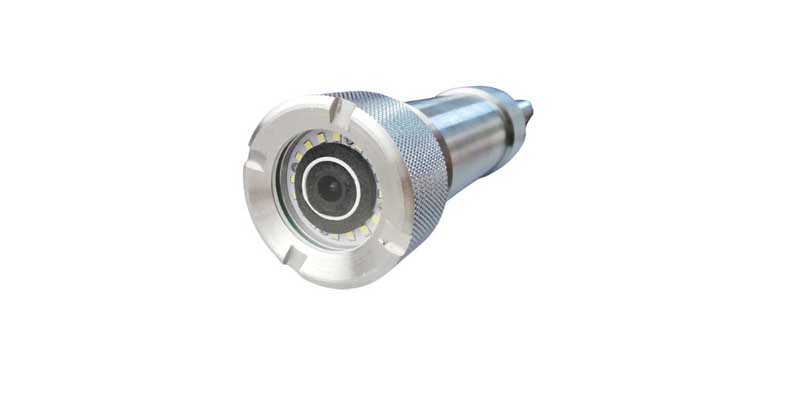

well inspection camera 800

Super high resolution color picture

Low light operation

Led underwater light

Stainless steel housing

Military grade water tightness cable

Ability to attach up to deep place and stand large pressure of water.

borehole camera techncial sheet

Imaging chip

 1/3”color CCD

Resolution 850TVL
Lighting High power LED lights
Measuring depth range 0-2000M
Color rotating lens 12,000,000 pixel sensitivity 1.5 Lux
Viewing Angle Panoramic
Illuminating brightness Automatic
Pressure 20Mpa
Camera probe diameter 70mm
Applicable model GYGD-IV, GYGD-IIS, GYGD-III
